SELECT A DIAGRAM

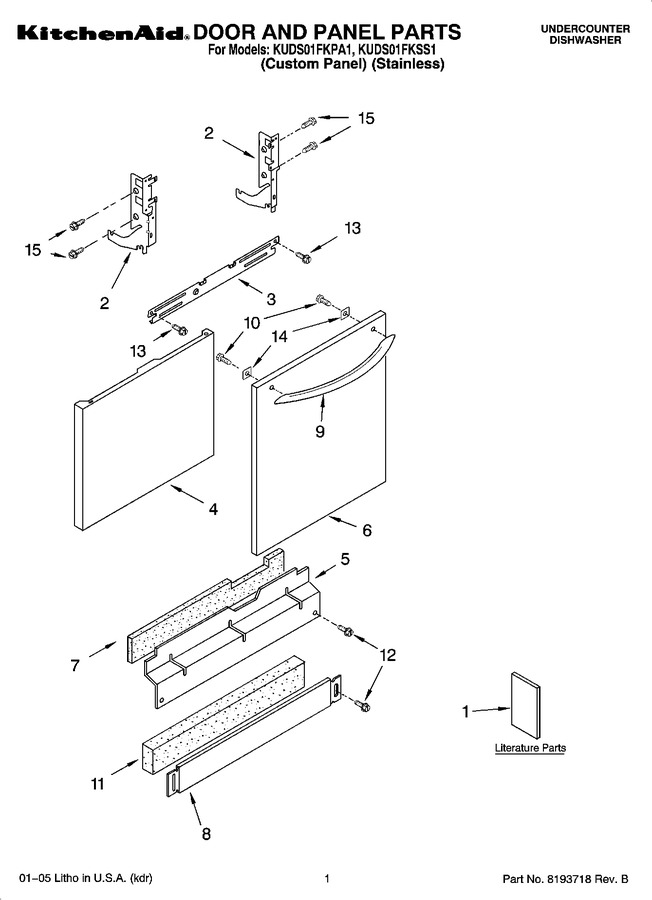

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts


12 - Miscellaneous Parts Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8533399		Literature Parts (english/french)		Appelez-nous	-
1	LIT8524480		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8531624		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT8531057		Literature Parts (guide, Use & Care Tech Sheet)		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	W11113792		Panel Front   (Replaces: 8524576)			Immediately	$ 373.42
5	W11763736		Access Panel (includes Item 7)   (Replaces: 8269007)			Immediately	$ 42.25
6	8270189		Panel, Full Front (stainless)		Appelez-nous	-
7	W10831329		Insulation, Access Panel   (Replaces: 8268584)			Immediately	$ 43.30
8	W10871196		Toe Panel (includes Item 11)   (Replaces: 8270026)				$ 174.04
9	9744438		Handle (stainless)		Appelez-nous	-
10	3400067		Screw				$ 35.58
11	W10831329		Insulation Toe Panel   (Replaces: 8268581)			Immediately	$ 43.30
12	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
14	9744437		Plate, Backing				$ 20.09
15	WP3400071		Screw (2)   (Replaces: 3400071)				$ 8.26

    View Diagram in Separate Window       Print Part List
