SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel Parts

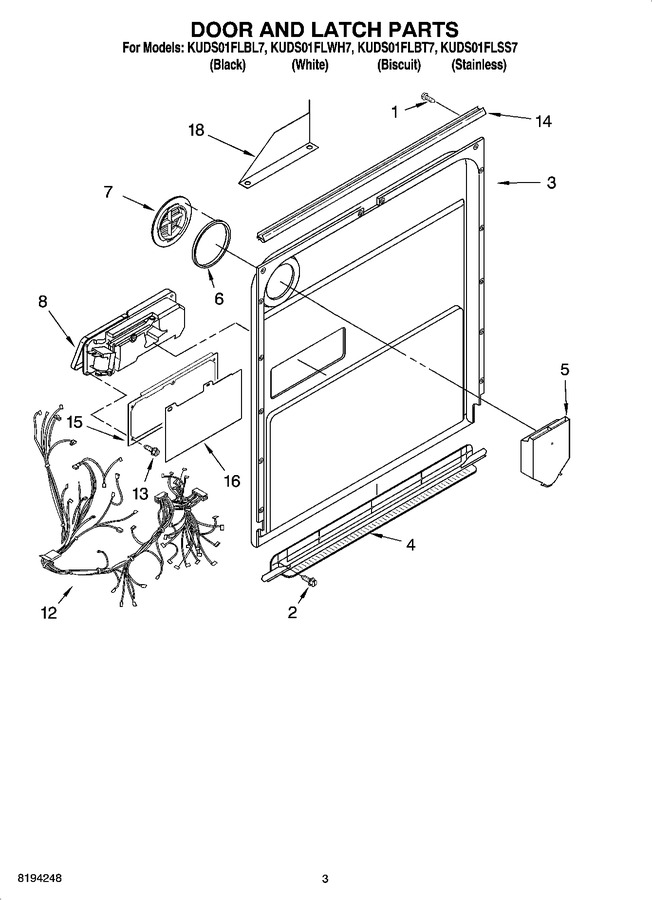

03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 8.20
2	W11631670		Screw   (Replaces: 8281217)				$ 14.72
3	8530900		Inner Door Mastic Assembly (also Order Item 6)		Appelez-nous	-
4	WP8268937		Inlet, Air   (Replaces: 8268937)			Immediately	$ 58.29
5	8531759		Vent Assembly (also Order Item 6)		Appelez-nous	-
6	WP8269259		Gasket, Vent   (Replaces: 8269259)			Immediately	$ 63.50
7	WP8545536		Deflector, Vent (also Order Item 6)   (Replaces: 8545536)				$ 83.29
8	WP8558129		Dispenser, Assembly   (Replaces: 8269996)			Immediately	$ 79.69
12	8573178		Wiring Harness & Protector				$ 114.11
13	WPW10177098		Screw (6)   (Replaces: 8281154)			Immediately	$ 8.02
14	WP8535660		Seal,console/door   (Replaces: 8535660)				$ 186.01
15	WPW10462232		Bracket, Dispenser   (Replaces: 8535637)				$ 37.79
16	WP8531865		Shield, Dispenser   (Replaces: 8531865)				$ 113.15
18	8531799		Shield, Solenoid				$ 33.64

    View Diagram in Separate Window       Print Part List
