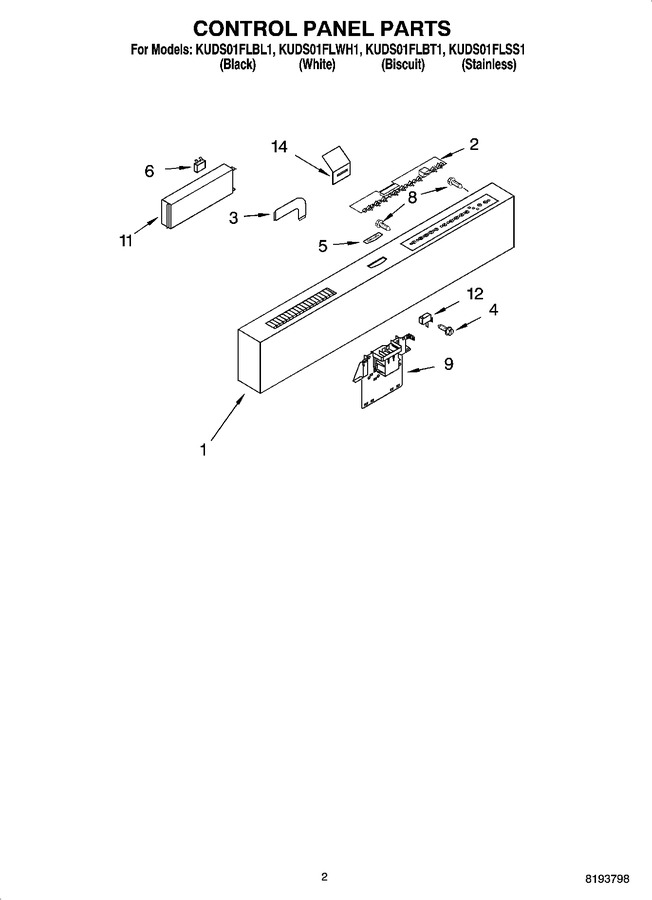

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10775980 | Console Assembly (includes Insert & Medallion) (Replaces: 8531538) |
|
Immediately | $ 112.21 | ||||
| 2 | WP8270168 | User Interface (Replaces: 8270168) |
|
$ 302.11 | |||||
| 3 | 8524447 | Ribbon Cable |
|
$ 67.21 | |||||
| 4 | WP3400412 | Screw (Replaces: 3400412) |
|
Immediately | $ 7.94 | ||||
| 5 | 8524425 | Medallion |
|
- | |||||
| 6 | 8193762 | Fuse, Thermal Electronic (Replaces: 8269213) |
|
Immediately | $ 46.17 | ||||
| 8 | WPW10348409 | Screw (6) (Replaces: 3369051) |
|
Immediately | $ 8.20 | ||||
| 9 | 8193830 | Latch Assembly (Replaces: 8270175) |
|
Immediately | $ 137.81 | ||||
| 11 | 8534866 | Control, Electronic |
|
- | |||||
| 12 | WP8269209 | Switch, Door (Replaces: 8269209) |
|
Immediately | $ 43.30 | ||||
| 14 | 8524547 | Shield |
|
- |
