Diagram for 01 - Door And Panel Parts

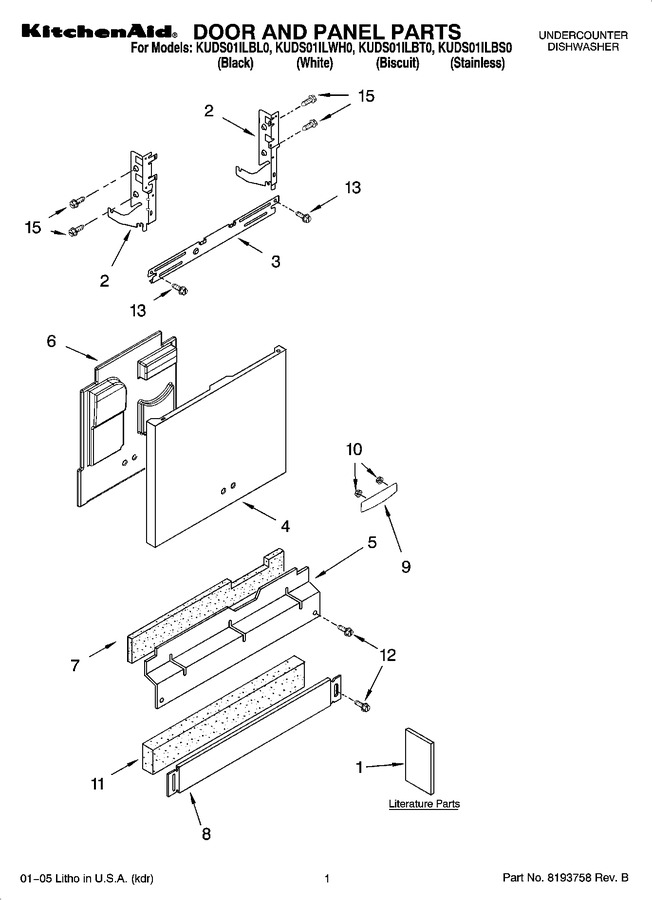

01 - Door And Panel Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Door And Latch Parts
03 - Door And Latch Parts

Diagram for 04 - Lower Washarm And Strainer Parts
04 - Lower Washarm And Strainer Parts

Diagram for 05 - Heater Parts
05 - Heater Parts

Diagram for 06 - Fill And Overfill Parts
06 - Fill And Overfill Parts

Diagram for 07 - Tub And Frame Parts
07 - Tub And Frame Parts

Diagram for 08 - Pump And Motor Parts
08 - Pump And Motor Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Upper Wash And Rinse Parts
10 - Upper Wash And Rinse Parts

Diagram for 11 - Lower Rack Parts
11 - Lower Rack Parts

Diagram for 12 - Miscellaneous Parts Optional Parts (not Included)
12 - Miscellaneous Parts Optional Parts (not Included)


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT8524480 Literature Parts (instructions, Installation) Appelez-nous -
1 LIT8531624 Literature Parts (guide, Energy) Appelez-nous -
1 LIT8531135 Literature Parts (guide, Use & Care Tech Sheet) Appelez-nous -
1 LIT8533399 Literature Parts (english/french) Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 130.98

2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 130.98

3 8268983 Stiffener, Door Special Order $ 38.77

4 8270088 Panel Front (includes Item 6) (stainless) Appelez-nous -
4 8270086 Panel Front (includes Item 6) (biscuit) Appelez-nous -
4 8270085 Panel Front (includes Item 6) (white) Appelez-nous -
4 8270084 Panel Front (includes Item 6) (black) Appelez-nous -
5 W10871198 Access Panel (includes Item 7) (biscuit)   (Replaces: 8269009) Special Order $ 147.59

5 W11763739 Access Panel (includes Item 7) (white)   (Replaces: 8269008) Special Order $ 38.79

5 W11763736 Access Panel (includes Item 7) (black)   (Replaces: 8269007) In-Stock Immediately $ 38.79

6 8531330 Brace, Foam Appelez-nous -
7 W10831329 Insulation, Access Panel   (Replaces: 8268584) In-Stock Immediately $ 40.71

8 W10871196 Toe Panel (includes Item 11) (black)   (Replaces: 8270026) Special Order $ 165.75

8 8270028 Toe Panel (includes Item 11) (biscuit) Appelez-nous -
8 WPW10586591 Toe Panel (includes Item 11) (white)   (Replaces: 8270027) Special Order $ 309.39

9 2209118W Nameplate (white) Appelez-nous -
9 2005292 Nameplate (black) Special Order $ 52.20

9 2209118T Nameplate (biscuit) Appelez-nous -
10 WP2004333 Nut   (Replaces: 2004333) Special Order $ 10.70

11 W10831329 Insulation Toe Panel   (Replaces: 8268581) In-Stock Immediately $ 40.71

12 3400865 Screw (biscuit) Special Order $ 13.40

12 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 7.53

12 WP302868 Screw Black   (Replaces: 302868) In-Stock Immediately $ 7.75

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 7.86

15 WP3400071 Screw (2)   (Replaces: 3400071) Special Order $ 7.82
