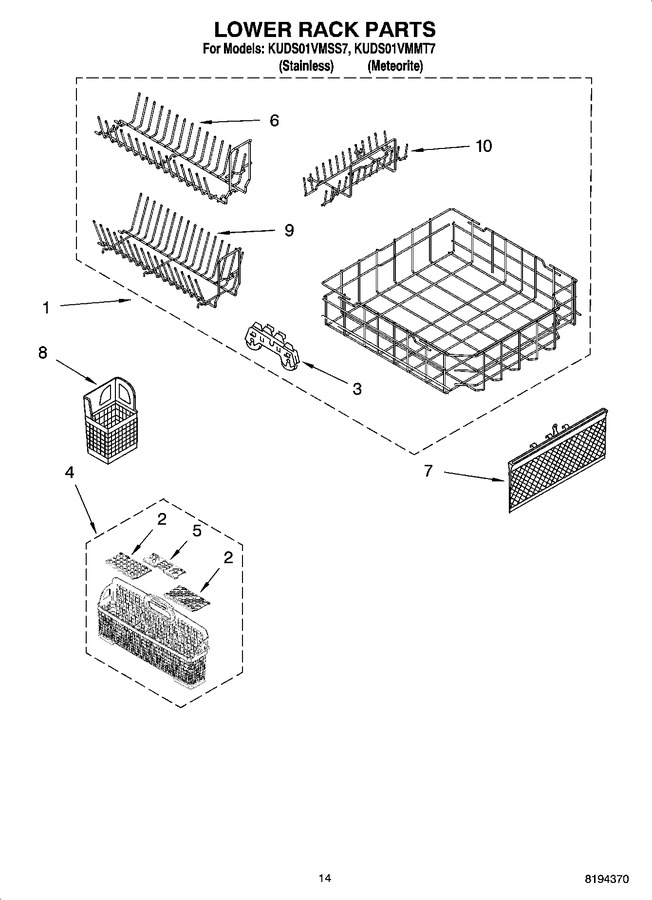

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10780925		Lower Rack Assembly   (Replaces: 8519705)			Immediately	$ 212.49
2	8519663		Lid, Basket Silverware (right Side)				$ 94.69
2	8519695		Lid, Basket Silverware (left Side)				$ 24.92
3	WP8268713		Wheel & Transport Assembly   (Replaces: 8268713)				$ 94.97
4	WPW10190415		Basket, Silverware   (Replaces: 8531282)			Immediately	$ 99.05
5	8519662		Lid, Basket Center				$ 52.35
6	8519706		Insert, Large		Appelez-nous	-
7	8519716		Basket,small Items				$ 57.95
8	8519702		Basket-utensil				$ 39.71
9	8519707		Insert, Medium		Appelez-nous	-
10	8519717		Insert, Small		Appelez-nous	-
	4396853		Vinyl Touch-up (4oz.) (silver Atlantis)				$ 40.14
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	4396840RC		Silver Atlantis Vinyl Touch-up (4 Oz.)   (Replaces: 4396854)			Immediately	$ 74.08
	WP676453		Vinyl Touch-up (4oz.) (white)   (Replaces: 676453)			Immediately	$ 53.65
	WP676455		Vinyl Touch-up (4oz.) (grey)   (Replaces: 676455)			Immediately	$ 39.58
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	8171656		Accessories Side Panel Kits (white)				$ 418.17
	8171657		Accessories Side Panel Kits (black)				$ 625.77
	8171658		Accessories Side Panel Kits (biscuit)		Appelez-nous	-
	8171659		Accessories Side Panel Kits (stainless Steel Custom Panel Kits)				$ 705.00
	8212505		Accessories Side Panel Kits (stainless Steel)		Appelez-nous	-
	8212506		Accessories Side Panel Kits (meteorite Color Panel Kits)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	4396178		Accessories Side Panel Kits (hunter Green)		Appelez-nous	-
	4396179		Accessories Side Panel Kits (cobalt Blue)		Appelez-nous	-
	4396180		Accessories Side Panel Kits (empire Red Custom Panel & Trim Kit)		Appelez-nous	-
	8212489		Accessories Side Panel Kits (black Moisture Barrier Kit)				$ 368.42
	4396277		Accessories Side Panel Kits (kit Towel Bar Handle Kit)				$ 48.77
	8573938		Accessories Side Panel Kits (stainless Steel Drain Hose)				$ 104.22
	3385556		Accessories Side Panel Kits (12 Ft.)			Immediately	$ 38.26
	4392899		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
	8171571		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (cobalt Blue)				$ 32.06
	8171651		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (hunter Green)				$ 20.17
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	8171652		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (empire Red)				$ 31.73
	W10202939		Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (meteorite)   (Replaces: 4396603)				$ 26.23
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	285006		Accessories Side Panel Kits Paint, Pressurized Spray (12 Oz.) (superior Black)				$ 59.89
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	4317824		Power Cord Kit (includes Powercord & Misc.hardware)			Immediately	$ 19.77
	8171477		Floor Mount Kit				$ 62.44
	N/A		Dishrack Repair Tip Tine Repair Kit (enough For Two Complete Dishracks)		Appelez-nous	-
	4396838RC		Dishrack Repair (white)   (Replaces: 4396838)			Immediately	$ 74.08
	4396840RC		Dishrack Repair (grey)   (Replaces: 4396840)			Immediately	$ 74.08
