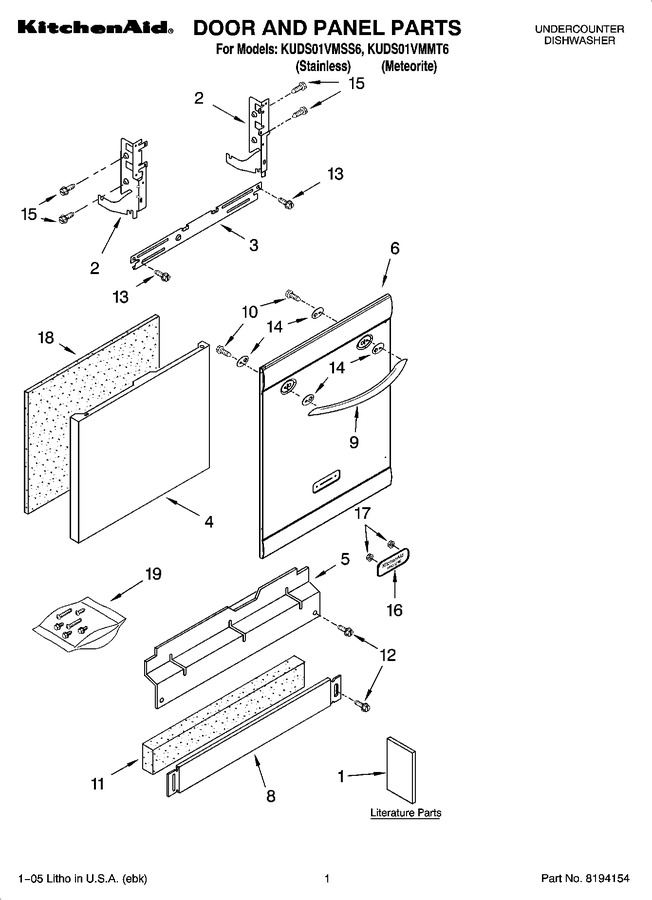

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8564554		Instructions, Installation		Appelez-nous	-
1	8572276		Energy Guide		Appelez-nous	-
1	8531778		Guide, Use & Care		Appelez-nous	-
1	8531822		Guide, Use & Care Dvd Tech Sheet		Appelez-nous	-
1	8564549		English/french		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	W11113792		Panel Front   (Replaces: 8535133)			Immediately	$ 373.42
5	W11763736		Access Panel   (Replaces: 8543834)			Immediately	$ 42.25
6	8531599		Panel, Full Front (includes Items 14, 16, & 17) (stainless)		Appelez-nous	-
6	8531600		Panel, Full Front (includes Items 14, 16, & 17) (meteorite)		Appelez-nous	-
8	W10871196		Toe Panel (includes Item 11)   (Replaces: 8270026)				$ 174.04
9	8531594		Handle		Appelez-nous	-
10	8533924		Screw				$ 6.33
11	W10831329		Insulation Toe Panel   (Replaces: 8268581)			Immediately	$ 43.30
12	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
14	8531606		Plate, Backing (rear)		Appelez-nous	-
14	8531605		Plate, Backing (front)		Appelez-nous	-
15	WP3400071		Screw (2)   (Replaces: 3400071)				$ 8.26
16	8531788		Nameplate		Appelez-nous	-
17	WP2004333		Nut   (Replaces: 2004333)				$ 11.24
18	8537831		Insulation, Door		Appelez-nous	-
19	8531882		Screws, Bag Door Assembly				$ 15.36
