SELECT A DIAGRAM

01 - Backguard Assy


02 - Cabinet Assy


03 - Main Top Assy - Open Burners


04 - Oven Components


05 - Oven Door Assy

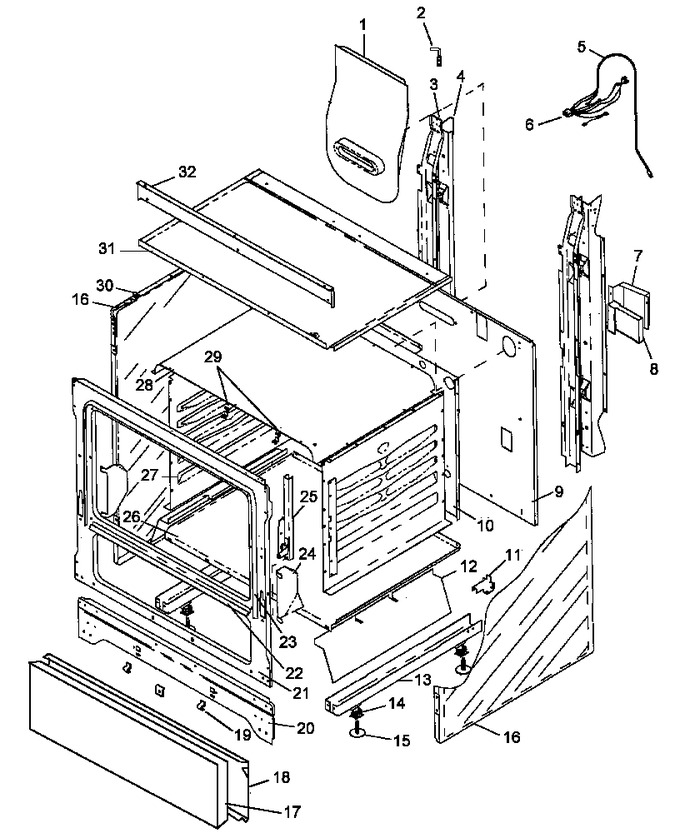

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y06564900		Flue, Oven		Appelez-nous	-
2	07730600		Wire, Hinge (right)		Appelez-nous	-
2	07730601		Wire, Hinge (left)		Appelez-nous	-
3	Y06565600		Supt. Main Back (vert)		Appelez-nous	-
4	0056477		Support, Rear, Vertical {j}		Appelez-nous	-
9	0088656		Main Back {j}		Appelez-nous	-
10	Y03382001E		Backliner, Oven (enamel)		Appelez-nous	-
11	07687600		Kit, Anti-tip		Appelez-nous	-
12	0310816		Radiation Shield, Broiler		Appelez-nous	-
13	06554900		Rail, Base		Appelez-nous	-
14	Y0088571		Snap-in Tee Nut		Appelez-nous	-
15	W11117769		Leveler, Leg   (Replaces: Y01084002)			Immediately	$ 19.37
16	06559000W		Side, Body (white)		Appelez-nous	-
17	Y06539000W		Panel, Fixed (white)		Appelez-nous	-
18	Y06554000		Shield, Broiler		Appelez-nous	-
19	Y0088664		Spring Clip		Appelez-nous	-
20	Y06451603		Panel, Toe 30`` (galv)		Appelez-nous	-
21	06567101E		Frame, Front (enamel)		Appelez-nous	-
22	Y0056091		Seal, Oven-top & Bottom 30``		Appelez-nous	-
23	Y0311770		Seal, Oven Door		Appelez-nous	-
24	0310064		Shield, Insulation (j)		Appelez-nous	-
25	Y0086789		Hinge, Oven Door		Appelez-nous	-
26	Y06467101		Baffle, Base (30``gas)		Appelez-nous	-
27	0311807		Liner,oven Side		Appelez-nous	-
28	Y06470802E		Topliner, Oven 30``gas		Appelez-nous	-
29	01052001		Clip, Capillary		Appelez-nous	-
32	Y06559505		Burner Box, Gas 30``		Appelez-nous	-
32	Y06559900		Extension, Burner Box		Appelez-nous	-
NI	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y01063001)			Immediately	$ 8.36
NI	Y01001303		Screw-no.10x9/16 Decr,bl		Appelez-nous	-
NI	0310054		Support, Side Liner {j}		Appelez-nous	-
NI	WP4159193		Screw,philip Pan Hd 10-24x5/16   (Replaces: Y0310611)				$ 5.07
NI	Y06538700		Clip, Bracket		Appelez-nous	-
NI	0310038		Insulation Back (j)		Appelez-nous	-
NI	0310033		Clip, Speed (doz) {j}		Appelez-nous	-
NI	07596600		Screw No.10		Appelez-nous	-
NI	Y01000300		Screw, 10 X 1-1/2		Appelez-nous	-
NI	Y0310039		Insulation,wrapper		Appelez-nous	-
