SELECT A DIAGRAM

01 - Backguard Assy


02 - Broiler Drawer Assy


03 - Cabinet Assy

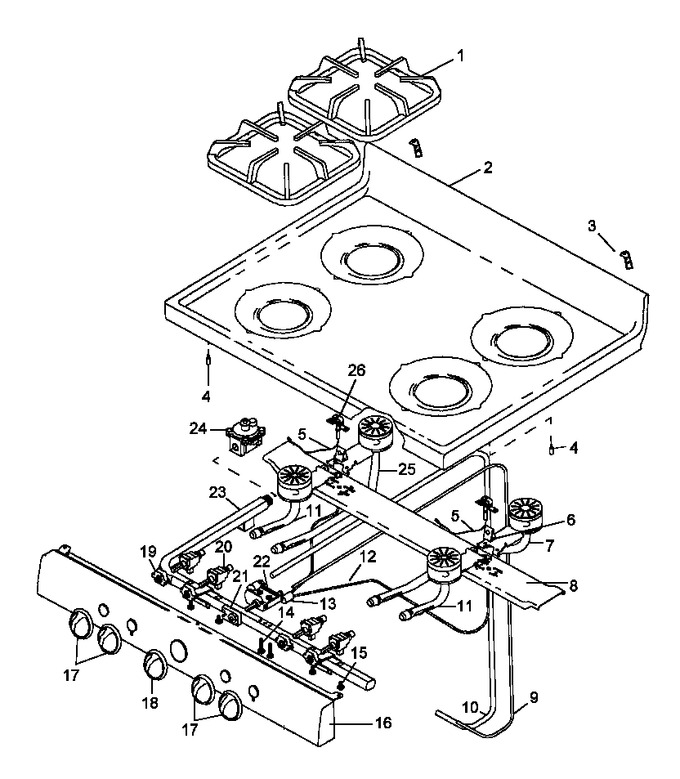

04 - Main Top Assy - Open Burners


05 - Oven Components


06 - Oven Door Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y07713600		Grate, Square Wire (black)		Appelez-nous	-
2	06558100W		Maintop (white)		Appelez-nous	-
3	Y07730700		Bushing, Hinge Wire		Appelez-nous	-
4	Y0310036		Screw, Stud		Appelez-nous	-
5	Y0057254		Igniter-spk, Top Burner		Appelez-nous	-
7	Y07707000		Burner, Rear R.h.		Appelez-nous	-
8	Y06561401		Supt-top Brnr, 30		Appelez-nous	-
9	Y03022901		Tubing, Oven Pilot 3/16`` X 53``		Appelez-nous	-
10	Y0090761		Tubing, 3/8`` Od, 10 Ft.		Appelez-nous	-
11	Y07706900		Burner, Front		Appelez-nous	-
14	Y07721600		Bolt, Mtg Therm/gasket		Appelez-nous	-
15	Y07721500		Bolt, Mtg Valve/gasket		Appelez-nous	-
16	Y07710204		Panel, Manifold		Appelez-nous	-
17	Y07708301		Knob, Top Burner		Appelez-nous	-
18	07723500		Knob, Oven Thermostat		Appelez-nous	-
19	Y07721000		Switch, Spark-valve		Appelez-nous	-
20	Y07720701		Valve, Top Burner		Appelez-nous	-
21	Y07720900		Switch, Spark T-stat		Appelez-nous	-
22	Y07720200		Thermostat, Oven, Spark		Appelez-nous	-
23	07706802F		Pipe-manifold		Appelez-nous	-
24	Y0088783		Pressure Regulator		Appelez-nous	-
25	Y07707100		Burner, Rear L.h.		Appelez-nous	-
26	0310114		Bracket, Ignitor		Appelez-nous	-
NI	Y0310363		Screw No.10x1/2 Blunt		Appelez-nous	-
NI	Y07723100		Harness, Spark Switch		Appelez-nous	-
NI	Y0311900		Screw, No.10-12 X 50		Appelez-nous	-
NI	0088650		Square Nut {j}		Appelez-nous	-
NI	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y01063001)			Immediately	$ 8.36
NI	0310234		Screw No.10 X 5/16		Appelez-nous	-
