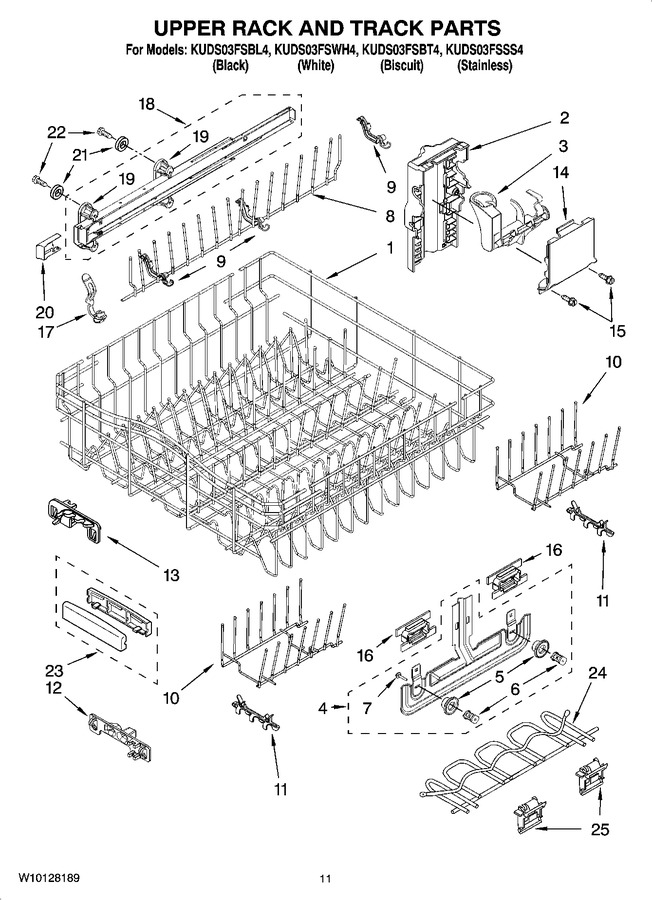

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11842830		Dishrack, Upper   (Replaces: 8561731)			Immediately	$ 179.58
2	8193741		Housing, Adjuster   (Replaces: 8531344)				$ 101.10
3	8531309		Actuator, Adjuster (left Hand)		Appelez-nous	-
3	8531310		Actuator, Adjuster (right Hand)		Appelez-nous	-
4	W10728567		Adjuster Assembly   (Replaces: 8268653)				$ 194.00
5	WP8270138		Wheel   (Replaces: 8270138)			Immediately	$ 11.88
6	WP8268703		Axel, Adjuster   (Replaces: 8268703)			Immediately	$ 11.28
7	8281156		Screw				$ 5.83
8	W10727426		Tine Row   (Replaces: 8562030)			Immediately	$ 85.10
9	WP8539190		Clip, Pivot   (Replaces: 8539190)				$ 88.99
10	8539149		Insert, Fold Down Tines				$ 32.75
11	8539148		Clip, Insert Tines				$ 19.93
12	WP8539102		Positioner, Dual   (Replaces: 8539102)				$ 103.88
13	WP8539103		Positioner, Multi   (Replaces: 8539103)				$ 97.02
14	8193741		Cover, Adjuster   (Replaces: 8531346)				$ 101.10
15	WP9741232		Retainer   (Replaces: 9741232)			Immediately	$ 5.07
16	8268738		Positioner, Arm				$ 42.48
17	WP8539101		Clip, No-flip   (Replaces: 8539101)				$ 84.22
18	WPW10247511		Track, Assembly (right Hand)   (Replaces: 8564924)				$ 303.38
18	WPW10247512		Track, Assembly (left Hand (also Order Item 21))   (Replaces: 8564923)				$ 277.64
19	8270137		Mount, Track (also Order Item 21)				$ 6.50
20	WP8573954		Stop, Track (right)   (Replaces: 8573954)				$ 7.30
20	8573953		Stop, Track (left)				$ 5.84
21	WP9743002		Gasket, Bracket Mounting   (Replaces: 9743002)			Immediately	$ 10.04
22	WPW10348407		Screw (8)   (Replaces: 3400072)				$ 8.06
23	8539110		Handle, Dishrack		Appelez-nous	-
24	W11125975		Cupshelf   (Replaces: 8562029)				$ 140.19
25	8562026		Clip, Cupshelf				$ 101.18
