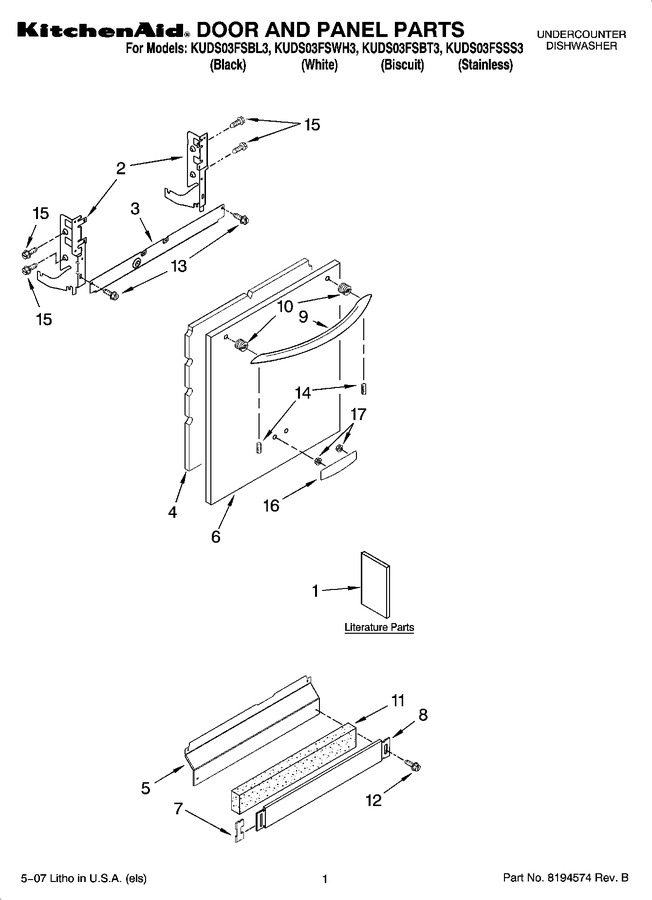

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8574116		Instructions, Installation		Appelez-nous	-
1	W10102692		Energy Guide		Appelez-nous	-
1	8574093		Guide, Use & Care		Appelez-nous	-
1	W10077956		Guide, Consumer Reference		Appelez-nous	-
1	W10082651		Tech Sheet		Appelez-nous	-
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
3	8564886		Stiffener, Door		Appelez-nous	-
4	WPW10073520		Insulation, Door   (Replaces: 8542577)				$ 96.23
5	W10871198		Access Panel (biscuit)   (Replaces: 8573257)				$ 161.50
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 42.25
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 170.94
6	W10021920		Panel, Full Front (includes Items 4,10,16 & 17) (biscuit)		Appelez-nous	-
6	W10021930		Panel, Full Front (includes Items 4,10,16 & 17) (stainless)		Appelez-nous	-
6	W10021910		Panel, Full Front (includes Items 4,10,16 & 17) (white)		Appelez-nous	-
6	W10021900		Panel, Full Front (includes Items 4,10,16 & 17) (black)		Appelez-nous	-
7	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
8	WPW10586591		Toe Panel (includes Items 7 & 11) (white)   (Replaces: 8558253)				$ 309.39
8	W10871196		Toe Panel (includes Items 7 & 11) (black)   (Replaces: 8558252)				$ 174.04
8	8558254		Toe Panel (includes Items 7 & 11) (biscuit)		Appelez-nous	-
9	W10083937		Handle (includes Item 14) (white)		Appelez-nous	-
9	W10083936		Handle (includes Item 14) (black)		Appelez-nous	-
9	W10083935		Handle (includes Item 14) (stainless)		Appelez-nous	-
9	W10083938		Handle (includes Item 14) (biscuit)		Appelez-nous	-
10	WP8564951		Stud, Mounting   (Replaces: 8564951)			Immediately	$ 19.33
11	W10831329		Insulation, Toe Panel   (Replaces: W10073550)			Immediately	$ 43.30
12	3400865		Screw (biscuit)				$ 14.07
12	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
12	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
14	WP8534008		Screw   (Replaces: 8534008)				$ 9.37
15	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
16	W10021850		Nameplate (stainless)				$ 62.01
16	W10021860		Nameplate (black)				$ 109.94
16	W10021870		Nameplate (white)				$ 128.26
16	W10021880		Nameplate (biscuit)		Appelez-nous	-
17	WP2004333		Nut   (Replaces: 2004333)				$ 11.24
