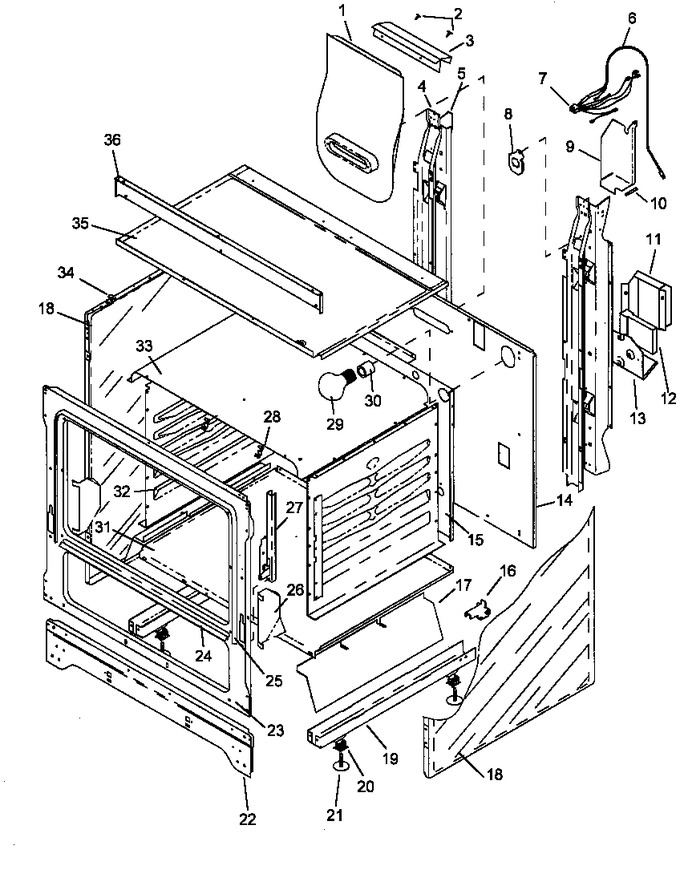

01 - Backguard Assy


02 - Broiler Drawer Assy


03 - Cabinet Assy


04 - Main Top Assy - Sealed Burners


05 - Oven Components


06 - Oven Door Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y06564900		Flue, Oven		Appelez-nous	-
2	Y0310036		Screw, Stud		Appelez-nous	-
4	Y06565600		Supt. Main Back (vert)		Appelez-nous	-
5	0056477		Support, Rear, Vertical {j}		Appelez-nous	-
6	0313772		Ass`y Power Cord		Appelez-nous	-
7	Y07463101		Wire Harness, Pur		Appelez-nous	-
10	Y0310035		Safe Edge 1&9/16``by 1/2``		Appelez-nous	-
11	06462003		Cover, Spark Module		Appelez-nous	-
12	Y07726900		Module, Spark, 4+1		Appelez-nous	-
14	0088656		Main Back {j}		Appelez-nous	-
15	Y03382001E		Backliner, Oven (enamel)		Appelez-nous	-
16	07687600		Kit, Anti-tip		Appelez-nous	-
17	0310816		Radiation Shield, Broiler		Appelez-nous	-
18	06559000L		Side, Body (almond)		Appelez-nous	-
19	06554900		Rail, Base		Appelez-nous	-
20	Y0088571		Snap-in Tee Nut		Appelez-nous	-
21	W11117769		Leveler, Leg   (Replaces: Y01084002)			Immediately	$ 19.37
22	Y06451602		Panel, Toe 30`` (black)		Appelez-nous	-
23	06567101E		Frame, Front (enamel)		Appelez-nous	-
24	Y0056091		Seal, Oven-top & Bottom 30``		Appelez-nous	-
25	Y0311770		Seal, Oven Door		Appelez-nous	-
26	0310064		Shield, Insulation (j)		Appelez-nous	-
27	Y0311852		Hinge,oven Door		Appelez-nous	-
28	01052001		Clip, Capillary		Appelez-nous	-
31	Y06467101		Baffle, Base (30``gas)		Appelez-nous	-
32	0311807		Liner,oven Side		Appelez-nous	-
33	Y06470802E		Topliner, Oven 30``gas		Appelez-nous	-
34	Y0087002		Sub 63661, Bumper, Ov. Dr.		Appelez-nous	-
35	Y06559500		Box, Burner		Appelez-nous	-
36	Y06559900		Extension, Burner Box		Appelez-nous	-
NI	Y01000300		Screw, 10 X 1-1/2		Appelez-nous	-
NI	Y01001303		Screw-no.10x9/16 Decr,bl		Appelez-nous	-
NI	WP4159193		Screw,philip Pan Hd 10-24x5/16   (Replaces: Y0310611)				$ 5.07
NI	0310240		Screw		Appelez-nous	-
NI	Y0310039		Insulation,wrapper		Appelez-nous	-
NI	0310038		Insulation Back (j)		Appelez-nous	-
NI	0310054		Support, Side Liner {j}		Appelez-nous	-
NI	0310033		Clip, Speed (doz) {j}		Appelez-nous	-
NI	Y0056088		Screw {j}		Appelez-nous	-
NI	0310064		Shield, Insulation (j)		Appelez-nous	-
