SELECT A DIAGRAM

01 - Door And Panel Parts

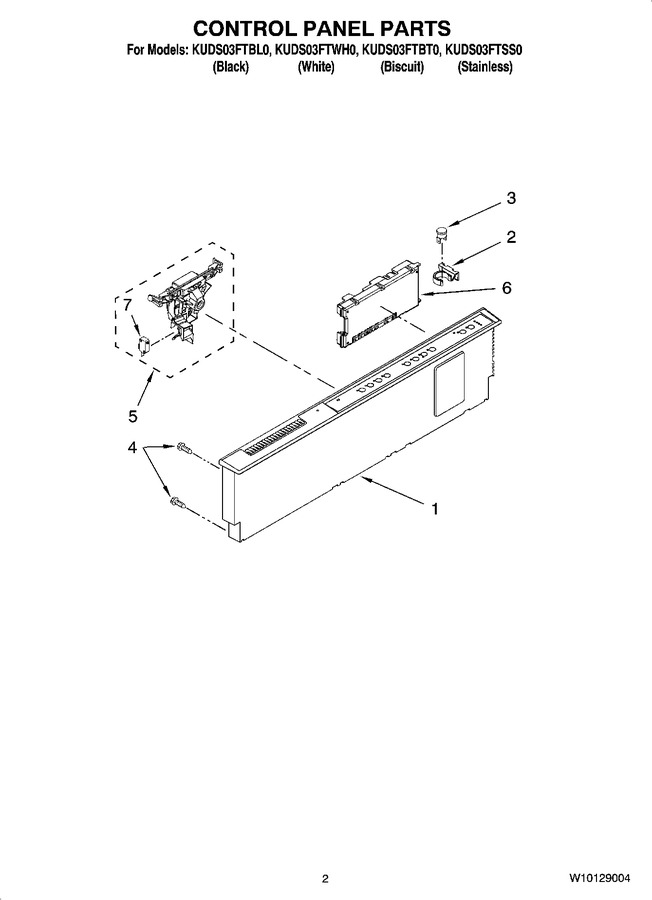

02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill, Drain, And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10078057		Console Assembly (includes Insert) (black)		Appelez-nous	-
1	W10078058		Console Assembly (includes Insert) (white)		Appelez-nous	-
1	W10078059		Console Assembly (includes Insert) (biscuit)		Appelez-nous	-
1	W10084132		Console Assembly (includes Insert) (stainless)		Appelez-nous	-
2	8546546		Clip, Bi-metal				$ 7.82
3	W10258275		Bi-metal   (Replaces: 661663)			Immediately	$ 41.71
4	WPW10348409		Screw (6)   (Replaces: 3369051)			Immediately	$ 8.20
5	WPW10404412		Latch Assembly   (Replaces: W10077360)			Immediately	$ 85.50
6	WPW10084141		Control, Electronic   (Replaces: 8575276)			Immediately	$ 313.68
7	WPW10134019		Switch, Door   (Replaces: W10134019)				$ 82.73
