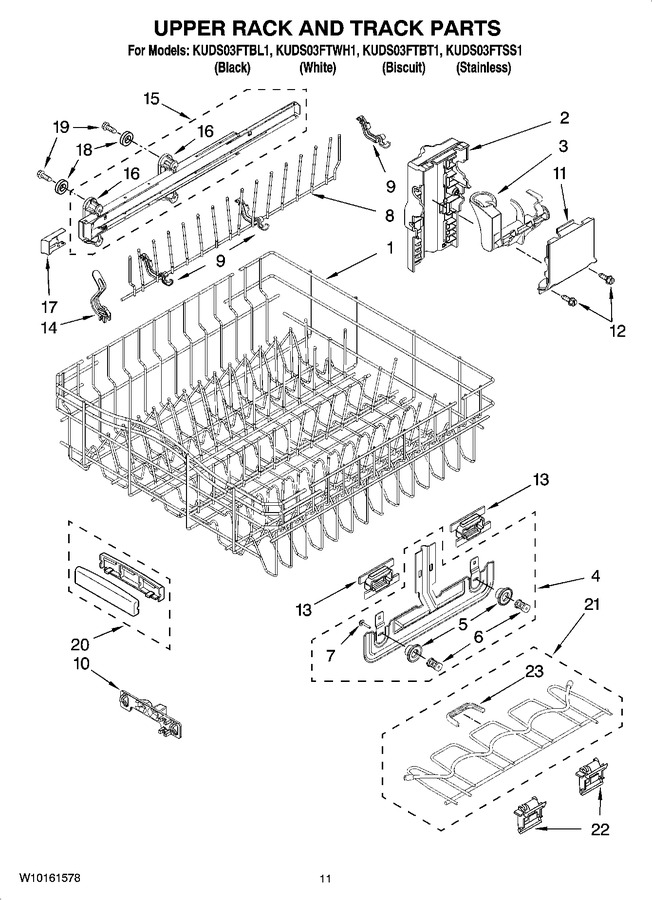

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: 8539235) |
|
Immediately | $ 179.58 | ||||
| 2 | W10728563 | Housing, Adjuster (Replaces: W10082839) |
|
$ 15.87 | |||||
| 3 | W10077839 | Actuator, Adjuster (left Hand) |
|
$ 38.28 | |||||
| 3 | W10077838 | Actuator, Adjuster (right Hand) |
|
$ 37.92 | |||||
| 4 | W10728567 | Adjuster Assembly (Replaces: 8268653) |
|
$ 194.00 | |||||
| 5 | WP8270138 | Wheel (Replaces: 8270138) |
|
Immediately | $ 11.88 | ||||
| 6 | WP8268703 | Axel, Adjuster (Replaces: 8268703) |
|
Immediately | $ 11.28 | ||||
| 7 | 8281156 | Screw |
|
$ 5.83 | |||||
| 8 | W10727426 | Tine Row (Replaces: 9744566) |
|
Immediately | $ 85.10 | ||||
| 9 | WPW10082853 | Clip, Pivot (Replaces: W10082853) |
|
Immediately | $ 5.40 | ||||
| 10 | WP8539102 | Positioner, Dual (Replaces: 8539102) |
|
$ 103.88 | |||||
| 11 | W10728561 | Cover, Adjuster (Replaces: W10082840) |
|
$ 20.53 | |||||
| 12 | WP9741232 | Retainer (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 13 | W10728566 | Positioner, Arm (Replaces: W10082834) |
|
Immediately | $ 8.22 | ||||
| 14 | WPW10077844 | Clip, No Flip (Replaces: W10077844) |
|
Immediately | $ 11.45 | ||||
| 15 | WPW10247512 | Track, Assembly (left Hand (also Order Item 18)) (Replaces: W10078217) |
|
$ 277.64 | |||||
| 15 | WPW10247511 | Track, Assembly (right Hand) (Replaces: W10078218) |
|
$ 303.38 | |||||
| 16 | W10077876 | Mount, Track (also Order Item 18) |
|
$ 33.42 | |||||
| 17 | 8573953 | Stop, Track (left) |
|
$ 5.84 | |||||
| 17 | WP8573954 | Stop, Track (right) (Replaces: 8573954) |
|
$ 7.30 | |||||
| 18 | WP9743002 | Gasket, Bracket Mounting (Replaces: 9743002) |
|
Immediately | $ 10.04 | ||||
| 19 | WPW10348407 | Screw (Replaces: 3400072) |
|
$ 8.06 | |||||
| 20 | 8539110 | Handle, Dishrack |
|
- | |||||
| 21 | W11125975 | Cupshelf (Replaces: W10077957) |
|
$ 140.19 | |||||
| 22 | 8562026 | Clip, Cupshelf |
|
$ 101.18 | |||||
| 23 | W10077843 | Indicator, Cupshelf |
|
- |
