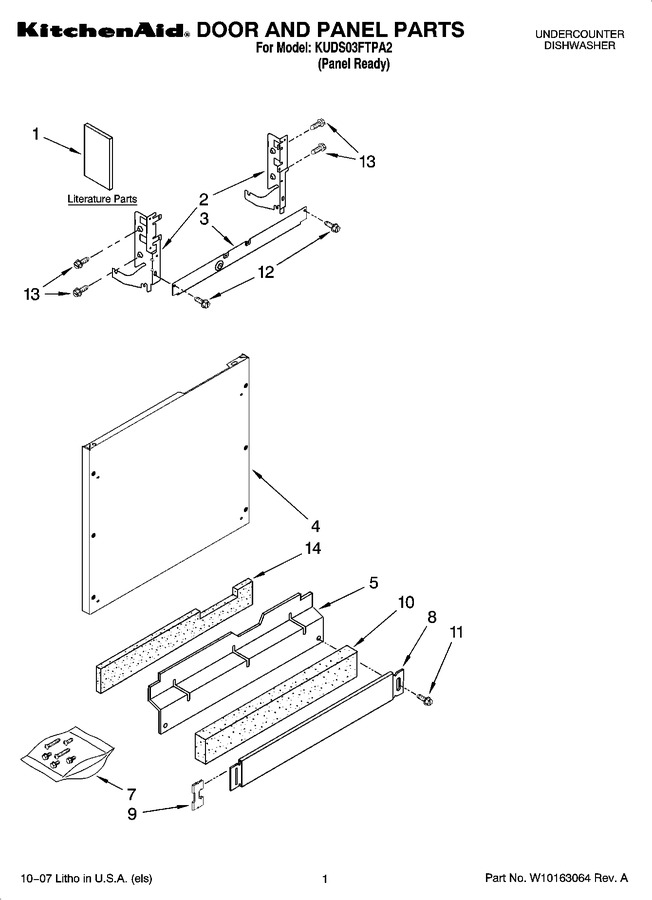

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill, Drain And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10130990		Tech Sheet		Appelez-nous	-
1	W10078153		Instructions, Installation		Appelez-nous	-
1	W10164239		Energy Guide		Appelez-nous	-
1	W10084169		Guide, Use & Care Spanish		Appelez-nous	-
1	W10084091		Guide, Use & Care Enlish/french		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 128.15
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 128.02
3	8564886		Stiffener, Door		Appelez-nous	-
4	W11113792		Panel Front   (Replaces: 8535133)			Immediately	$ 336.08
5	W11763736		Access Panel (includes 14) (black)   (Replaces: 8558260)			Immediately	$ 38.03
7	8531882		Screws, Bag Door Assembly				$ 15.36
8	W10871196		Toe Panel (includes 9 & 10) (black)   (Replaces: 8558252)				$ 156.64
9	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 10.09
10	W10831329		Insulation, Toe Panel   (Replaces: W10073550)			Immediately	$ 38.97
11	WP302868		Screw   (Replaces: 302868)			Immediately	$ 7.36
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
13	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
14	W10831329		Insulation, Access Panel   (Replaces: W10073540)			Immediately	$ 38.97
