01 - Compressor Parts


02 - Compressor Parts


03 - Condenser Parts


04 - Evap Parts


05 - Exterior Parts


06 - Fan Motor Parts


07 - Installation Kit Parts


08 - Interior Parts


09 - Interior Parts

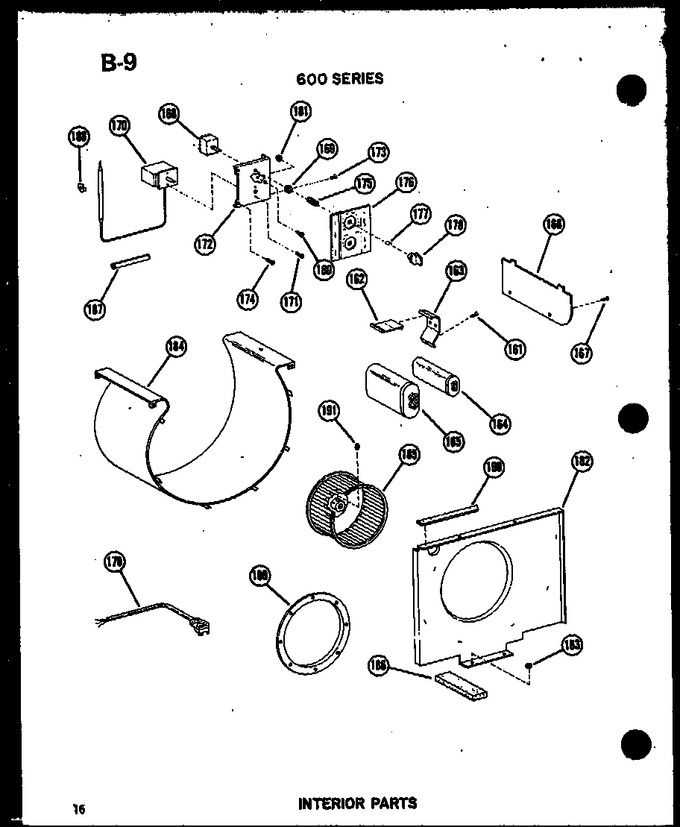

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
161	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
163	B1159702		Capacitor Strap		Appelez-nous	-
165	D5515666		Capacitor, Dual		Appelez-nous	-
166	B5170201		Panel, Control Side, Access		Appelez-nous	-
167	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
168	B5108802		Switch, Rotary		Appelez-nous	-
169	M0289601		Palnut		Appelez-nous	-
170	B5103801		Thermostat		Appelez-nous	-
171	R9800670		Screw   (Replaces: M0211343)				$ 10.58
171	M0232012		Screw		Appelez-nous	-
172	B5178201		Bracket Weld		Appelez-nous	-
173	M0250629		Screw		Appelez-nous	-
174	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
175	A4663601		Spring		Appelez-nous	-
176	B5172109		Escutcheon		Appelez-nous	-
177	YM0115901		Clip, Knob Mounting		Appelez-nous	-
178	D7009804		Knob		Appelez-nous	-
179	C5283104		Cord, Power		Appelez-nous	-
180	M0255015		Sems Fastner		Appelez-nous	-
181	WP488130		Nut   (Replaces: M0282007)				$ 7.32
182	D5421301		Inlet Panel		Appelez-nous	-
183	Y052721		Nut   (Replaces: M0281006)				$ 24.95
184	D5422201		Scroll		Appelez-nous	-
185	D5423601		Blower Wheel, Use D54236-2 For		Appelez-nous	-
186	C5825501		Filler Block		Appelez-nous	-
188	M0103201		Clamp		Appelez-nous	-
190	A3030330		Gasket,per Ft		Appelez-nous	-
