SELECT A DIAGRAM

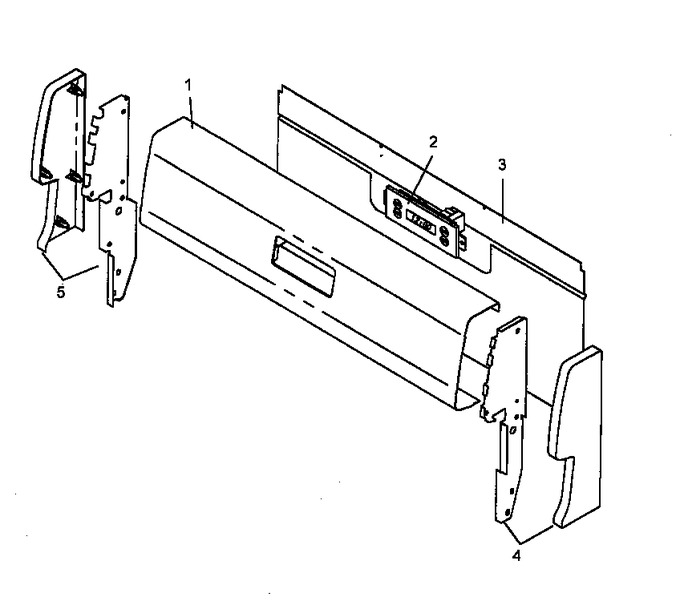

01 - Backguard Assy


02 - Broiler Drawer Assy


03 - Cabinet Assy


04 - Main Top Assy - Sealed Burners


05 - Oven Components


06 - Oven Door Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	07708801		Panel, Backguard		Appelez-nous	-
2	Y07707900		Clock (black)		Appelez-nous	-
3	Y06559600		Cover, Bkgd Wire		Appelez-nous	-
4	Y06567000		End Cap, Bkgd 11`` R.h.		Appelez-nous	-
5	Y06567001		Endcap, Bkgd 11`` L.h.		Appelez-nous	-
NI	Y07712301		Screw, No.10 X3/8`` (black)		Appelez-nous	-
NI	Y07712300		Screw, No.10 X 3/8``		Appelez-nous	-
NI	0310234		Screw No.10 X 5/16		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
