Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2158823 Transformer Appelez-nous -
2 1129328 Bracket, Transformer Appelez-nous -
3 489364 Screw (4) Appelez-nous -
4 1129418 Enclossure, Terminal Block Appelez-nous -
5 1129419 Cover, Enclosure Appelez-nous -
6 1129449 Bushing Appelez-nous -
7 1129346 Terminal Block Appelez-nous -
8 488854 Screw Appelez-nous -
9 489366 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

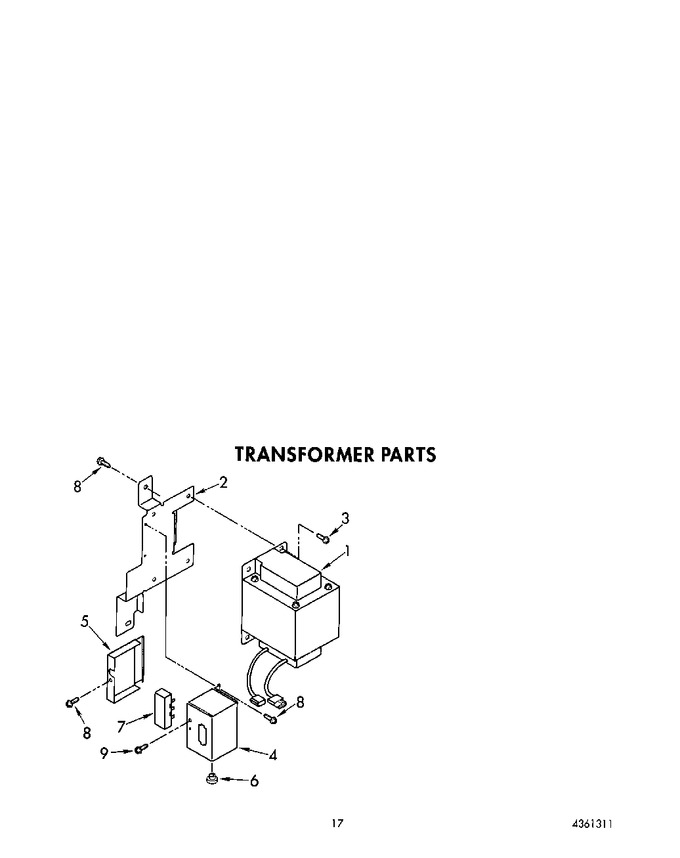

Diagram for 6ED22RQXWW00
