SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Freezer Interior


06 - Refrigerator Door


07 - Freezer Door

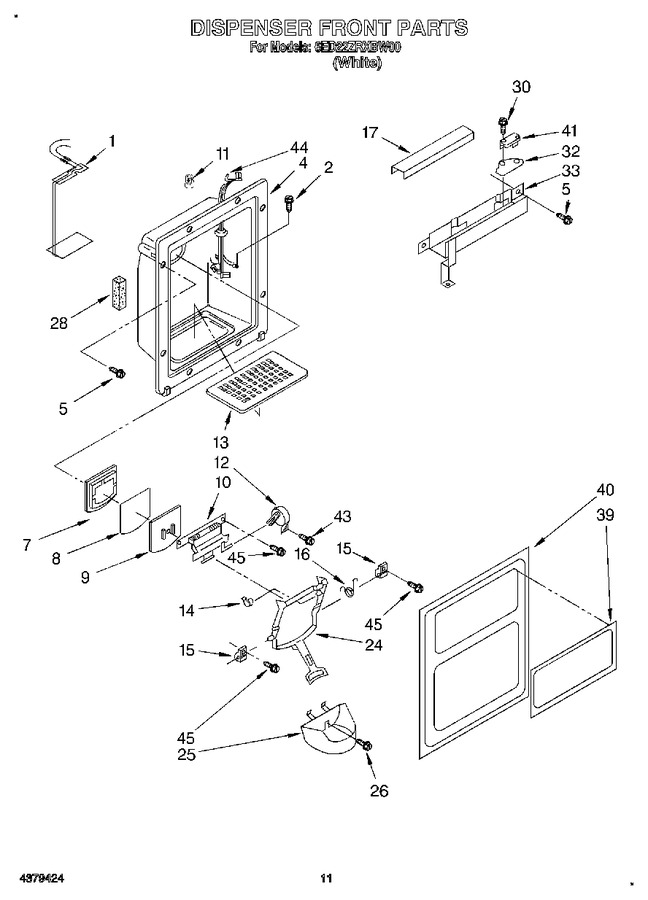

08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2170314		Heater, Dispenser		Appelez-nous	-
2	WP489128		Screw, Ground   (Replaces: 488500)				$ 11.40
4	1116820		Housing, Dispenser		Appelez-nous	-
5	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
7	983691		Gasket, Door				$ 6.61
8	987121		Shield, Ice Door				$ 5.91
9	983690		Door, Ice				$ 11.13
10	938669		Door Mechanism Assembly		Appelez-nous	-
11	227991		Wire Connector		Appelez-nous	-
12	WP1120581		Mechanism Delay   (Replaces: 1120581)				$ 223.72
13	983900		Grille, Overflow				$ 27.30
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (3)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	984494		Shield, Wiring		Appelez-nous	-
24	1127421		Lever, Ice Dispenser		Appelez-nous	-
25	1119035		Guide, Ice		Appelez-nous	-
26	489197		Screw		Appelez-nous	-
28	482672		Seal		Appelez-nous	-
30	489155		Screw,		Appelez-nous	-
32	984683		Insulator, Switch		Appelez-nous	-
33	1116811		Bracket, Control		Appelez-nous	-
39	2148685		Plaque, Front Cover		Appelez-nous	-
40	2148684		Front Cover, Housing (includes Item 39)		Appelez-nous	-
41	814037		Switch   (Replaces: 313125)				$ 94.88
43	488316		Screw		Appelez-nous	-
44	1118374		Wiring Assembly, Door		Appelez-nous	-
45	WP3400906		Screw   (Replaces: 489000)				$ 9.05

    View Diagram in Separate Window       Print Part List
