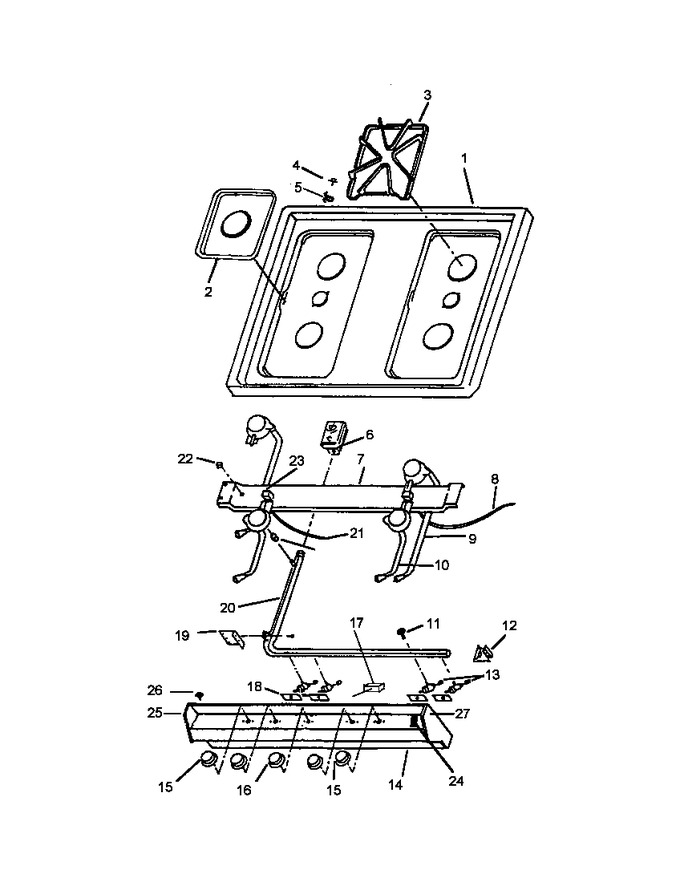

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310082W		Cooktop, White		Appelez-nous	-
2	WPY0060872		Burner Bowl   (Replaces: Y0060872)				$ 29.47
3	314651B		Grate		Appelez-nous	-
4	Y0310036		Screw, Stud		Appelez-nous	-
5	Y0310032		Nut, Speed, Flat		Appelez-nous	-
6	Y0088783		Pressure Regulator		Appelez-nous	-
7	Y06451810		Support, Top Burner 30``		Appelez-nous	-
8	Y07521502		Harness, Spark Switch		Appelez-nous	-
11	Y0056115		Surface Valve Bolt& Gasket		Appelez-nous	-
12	0311810		Bracket, Manifold Support		Appelez-nous	-
13	Y07596400		Valve, Gas		Appelez-nous	-
14	07648405		Panel, Man, Gas		Appelez-nous	-
15	Y07589200		Knob Top Burner				$ 18.03
16	Y0055029		Knob, Thermostat		Appelez-nous	-
17	WP878009		Switch, Spark, O.h.c.   (Replaces: Y0089068)				$ 120.61
18	WP4157180		Switch, Spark Valve   (Replaces: Y07455200)				$ 119.66
19	Y0311811		Bracket, Manifold Support		Appelez-nous	-
20	Y07647212		Pipe, Manifold (30``)		Appelez-nous	-
21	Y0056133		Electrode, Top Burner Rt		Appelez-nous	-
22	0088650		Square Nut {j}		Appelez-nous	-
23	Y0312158		Ignitor, Ground Strap		Appelez-nous	-
24	Y07634800		Switch, Rocker		Appelez-nous	-
25	0311855		End Cap, L.h.		Appelez-nous	-
26	0312238		Screw		Appelez-nous	-
27	Y0311854		End Cap, R.h.		Appelez-nous	-
NI	Y07699100		Burner - Top Front (cal)				$ 79.99
NI	WP7101P126-60		Screw, No.10-12 X 500`` Ab (zn)   (Replaces: Y01063001)			Immediately	$ 8.36
NI	0310234		Screw No.10 X 5/16		Appelez-nous	-
NI	Y07699200		Burner - Top Rear (cal)				$ 91.96

    View Diagram in Separate Window       Print Part List
