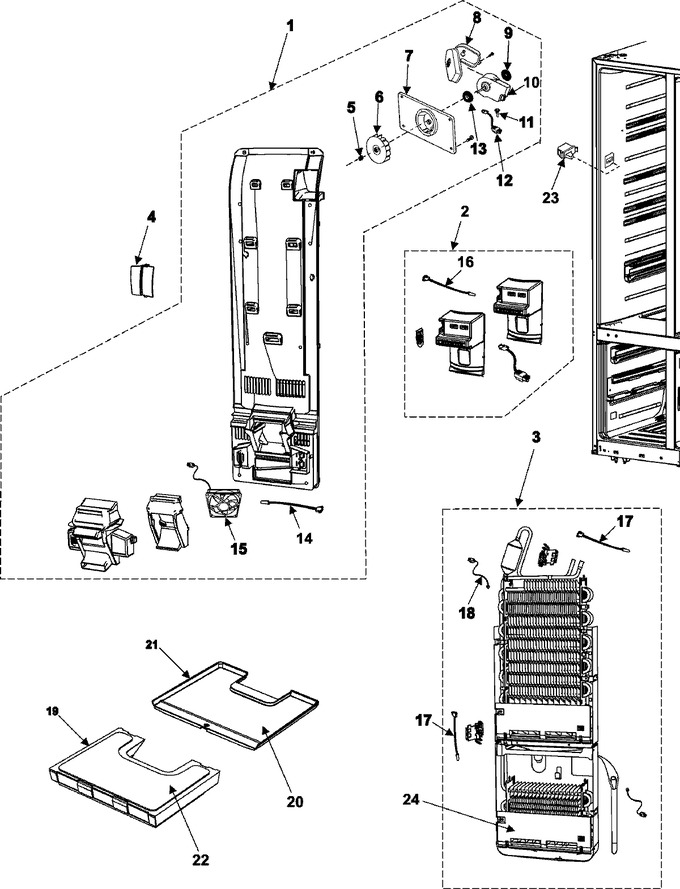

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	555555		Assy Cover Evap-fre   (Replaces: DA97-03114A)				$ 168.82
2	DA97-03130A		Assy Cover-multi Fre				$ 95.19
3	DA61-02369A		Plate-ins Evap, Fre;next		Appelez-nous	-
3	555555		Assy-evaporator Fre   (Replaces: DA97-03153B)				$ 168.82
4	DA63-02701A		Cover Evap-sub		Appelez-nous	-
5	DA61-20128A		Spring-fan				$ 0.94
6	DA31-00053A		Fan-backward				$ 20.75
7	DA61-00417A		Case Motor				$ 21.56
8	DA63-01809A		Cover Motor-bldc				$ 13.47
9	DA63-01146A		Grommet-motor				$ 7.72
10	DA31-00020E		Motor Dc-bldc,drep3020la,fre				$ 145.86
11	DA63-40167A		Grommet-cover Chil				$ 2.78
12	DA39-00060K		W/harness Motor				$ 131.50
13	DA63-01808A		Grommet-motor(bldc)			Immediately	$ 6.19
14	DA32-00011C		Sensor Temp-r			Immediately	$ 114.40
15	555555		Motor Dc-box Bldc   (Replaces: DA31-00125A)				$ 168.82
16	555555		Sensor-assy   (Replaces: DA32-10105C)				$ 168.82
17	555555		Sensor Temp-def Sensor   (Replaces: DA32-00006M)				$ 168.82
18	DA47-00133E		Thermo Bimetal-protector				$ 59.71
19	DA97-03135B		Assy Partition-rear,fre;next		Appelez-nous	-
20	DA63-02708A		Cover-partition,fre		Appelez-nous	-
21	DA97-03132A		Assy Cover-partition, Fre		Appelez-nous	-
22	DA62-01010A		Insulation Partition-rear;fre		Appelez-nous	-
22	DA67-01279A		Partition-rear,fre;next		Appelez-nous	-
23	DA34-10120E		Switch Door-f;-,slide,-,-,250v			Immediately	$ 44.16
24	DA63-02728A		Cover Heater-fre;next		Appelez-nous	-
