SELECT A DIAGRAM

01 - Arctic/fresh/select Zone Compartment


02 - Arctic/fresh/select Zone Doors


03 - Enclosure


04 - Fountain


05 - Freezer Compartment


06 - Freezer Door


07 - Freezer Shelves


08 - Hinges/front Wheels


09 - Ice Bin


10 - Ice Maker


11 - Machine Compartment-compressor


12 - Refrigerator Compartment


13 - Refrigerator Door


14 - Refrigerator Shelves

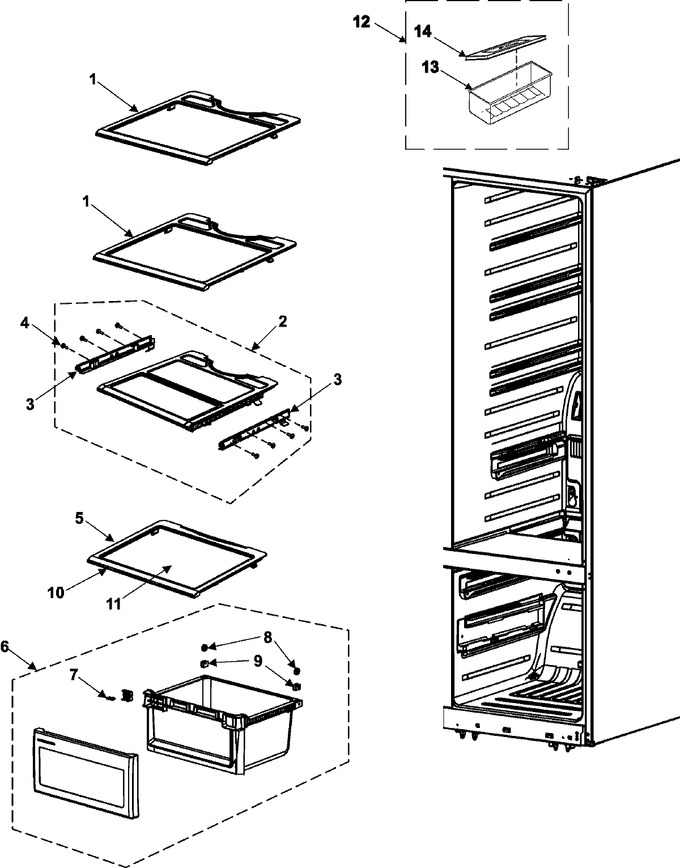

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	DA67-01284A		Shelf Ref-upp;next				$ 117.63
2	DA97-03645A		Assy Shelf Ref-fold;next				$ 115.38
3	DA67-01372A		Shelf Ref-fold,rail;next		Appelez-nous	-
4	6002-001341		Screw-tapping;bh,+,1,m4,l16,da				$ 0.94
5	DA67-01283A		Shelf Ref-low		Appelez-nous	-
6	DA97-02943A		Assy Case Veg-ref		Appelez-nous	-
7	DA64-00817A		Knob-humidity				$ 18.69
8	DA66-10104A		Roller-fre				$ 4.44
9	DA71-20277A		Fixer-roller			Immediately	$ 2.78
10	DA67-00903C		Shelf Ref-folder B;usp(650)		Appelez-nous	-
11	DA67-01253M		Glass-shelf Folder B		Appelez-nous	-
12	DA97-02806A		Assy Tray-egg;epel,t2.5,w324.5		Appelez-nous	-
13	DA63-02492A		Tray Egg;epel,gpps,t2.5,w324.5				$ 60.97
14	DA63-02491A		Cover-tray Egg;epel,gpps,t2.5,		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
