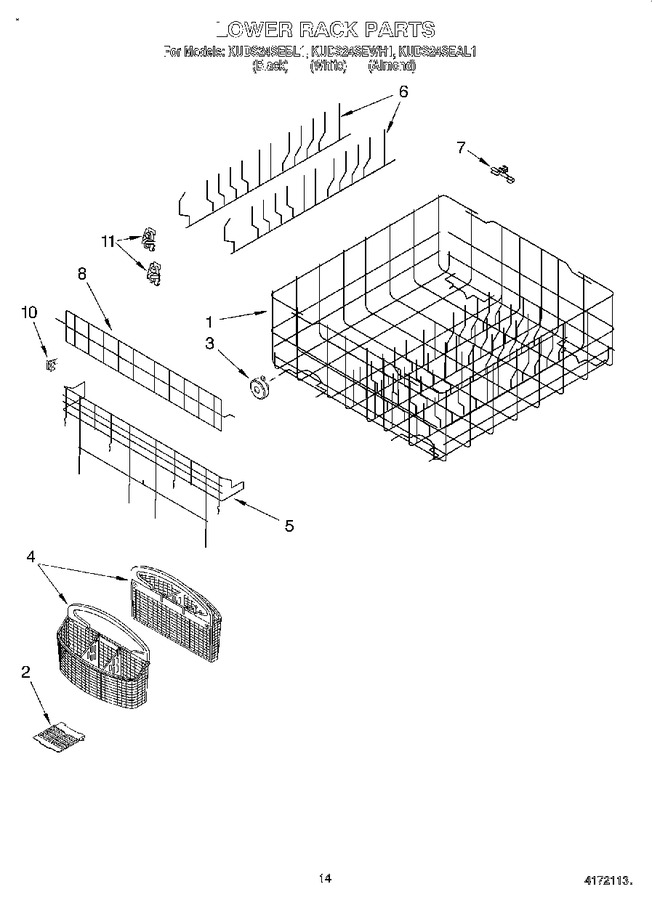

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10134647		Lower Rack Assembly (includes Item 3)   (Replaces: 9743501)				$ 194.47
2	9743048		Cover, Silverware Basket		Appelez-nous	-
3	9743007		Wheel Assembly (2) Lower Rack (8)				$ 9.48
4	9743045		Basket Half, Silverware		Appelez-nous	-
5	9743536		Extension, Side Wall		Appelez-nous	-
6	9743548		Flexrow (2)				$ 47.30
7	9743526		Clip, Flexrow (6)		Appelez-nous	-
8	3377419		Cupshelf		Appelez-nous	-
10	9743019		Clip, Cupshelf (3)				$ 7.82
11	3368629		Retainer, Flexrow (2)				$ 5.84

    View Diagram in Separate Window       Print Part List
