SELECT A DIAGRAM

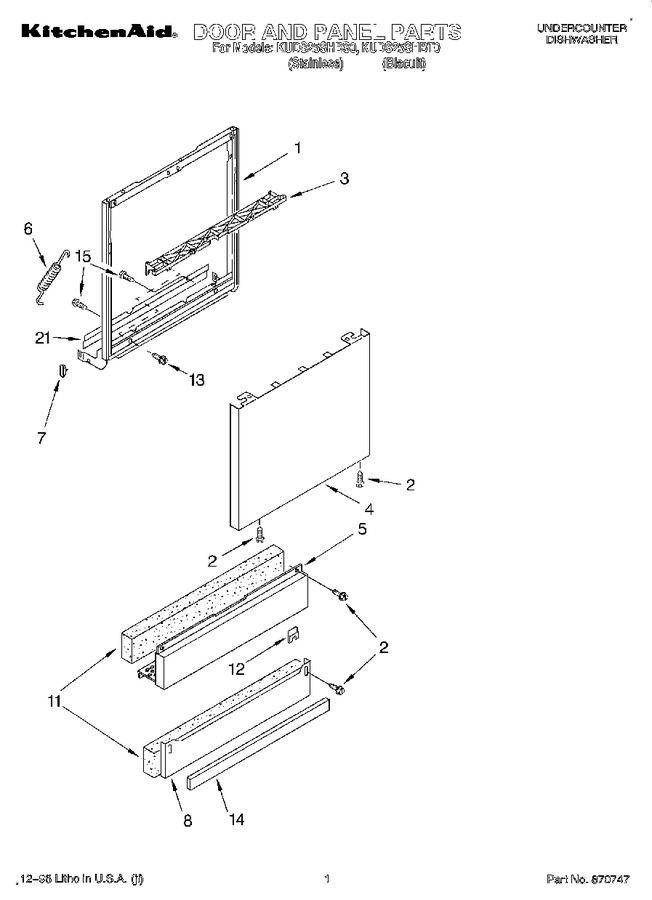

01 - Door And Panel


02 - Control Panel


03 - Door And Latch


04 - Lower Washarm And Strainer


05 - Heater


06 - Fill And Overfill


07 - Upper Wash And Rinse


08 - Tub And Frame


09 - Pump And Motor


10 - Upper Rack And Track


11 - Lower Rack


12 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9743788		Frame, Door		Appelez-nous	-
2	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
3	9742964		Stiffener, Door		Appelez-nous	-
4	8054178		Panel Front (biscuit Mdl.)				$ 111.70
4	9743581		Panel Front (stainless Mdl.)		Appelez-nous	-
5	9744145		Access Panel & Clip Assembly (includes Items 11 & 12) (biscuit)		Appelez-nous	-
5	9744146		Access Panel & Clip Assembly (includes Items 11 & 12) (stainless Mdl.)		Appelez-nous	-
6	WP9743986		Spring, Door (2)   (Replaces: 9743986)			Immediately	$ 29.69
7	WP3373234		Bushing, Spring Door (2)   (Replaces: 3373234)				$ 11.01
8	8054181		Toe Panel (includes Item 11) (biscuit Mdl.)		Appelez-nous	-
8	3368942		Toe Panel (includes Item 11) (stainless Mdl.)		Appelez-nous	-
11	9743825		Insulation		Appelez-nous	-
12	3378123		Clip, Grounding				$ 7.79
13	WP308685		Screw (2)   (Replaces: 3367670)			Immediately	$ 7.87
14	9744140		Seal, Toe Panel		Appelez-nous	-
15	WP488234		Screw (2)   (Replaces: 3400803)				$ 7.08
21	8054188		Barrier, Lower Vent		Appelez-nous	-
