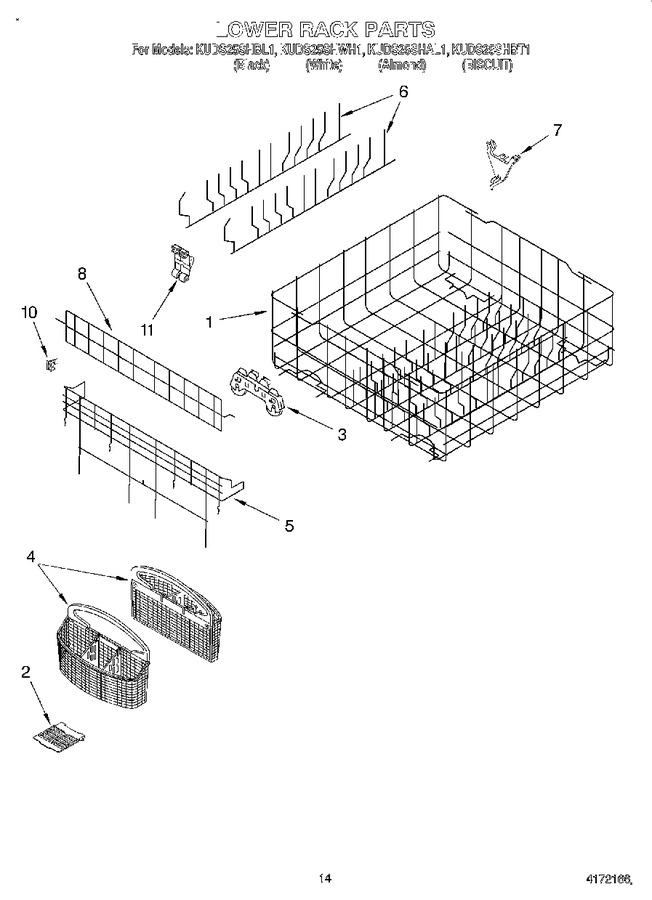

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10134647		Lower Rack Assembly (includes Item 3)   (Replaces: 3381484)				$ 194.47
2	9743048		Cover, Silverware Basket		Appelez-nous	-
3	8051252		Wheel & Transport Assembly				$ 40.59
4	9743574		Basket Half, Silverware				$ 48.56
5	9743536		Extension, Side Wall		Appelez-nous	-
6	9743685		Flexrow (2)		Appelez-nous	-
7	3379955		Pivot, Folddown				$ 25.40
8	3377419		Cupshelf		Appelez-nous	-
10	9743019		Clip, Cupshelf (3)				$ 7.82
11	3368629		Retainer, Flexrow (2)				$ 5.84
