Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10056407 Instructions,installation Appelez-nous -
1 W10247455 Energy Guide Appelez-nous -
1 W10205938 Guide, Use & Care (spanish) Appelez-nous -
1 W10205937 Guide, Use & Care English & French Appelez-nous -
1 W10142800 Tech Sheet Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 8268983 Stiffener, Door Special Order $ 38.77

4 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

5 W10871198 Access Panel (biscuit)   (Replaces: W10195779) Special Order $ 161.50

5 WPW10441007 Access Panel (white)   (Replaces: W10195778) Special Order $ 170.94

5 W11763736 Access Panel (black)   (Replaces: W10195777) In-Stock Immediately $ 42.25

6 W10077996 Panel, Full Front (includes Items 4, & 12) (white) Appelez-nous -
6 W10077997 Panel, Full Front (includes Items 4, & 12) (biscuit) Appelez-nous -
6 W10137620 Panel, Full Front (includes Items 4, & 12) (stainless) Appelez-nous -
6 W10077995 Panel, Full Front (includes Items 4, & 12) (black) Appelez-nous -
7 WPW10586591 Toe Panel (includes Items 8 & 13) (white)   (Replaces: 8558253) Special Order $ 309.39

7 W10871196 Toe Panel (includes Items 8 & 13) (black)   (Replaces: 8558252) Special Order $ 174.04

7 8558254 Toe Panel (includes Items 8 & 13) (biscuit) Appelez-nous -
8 W10831329 Insulation Toe Panel   (Replaces: 8268581) In-Stock Immediately $ 43.30

9 WP302868 Screw Black   (Replaces: 302868) In-Stock Immediately $ 8.18

9 3400865 Screw (biscuit) Special Order $ 14.07

9 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 8.10

10 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

11 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

12 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 58.31

12 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 73.70

12 W10243394 Nameplate (biscuit) Appelez-nous -
12 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 69.98

13 WP8269016 Clip, Grounding   (Replaces: 8269016) Special Order $ 11.21


    View Diagram in Separate Window     Print Icon   Print Part List

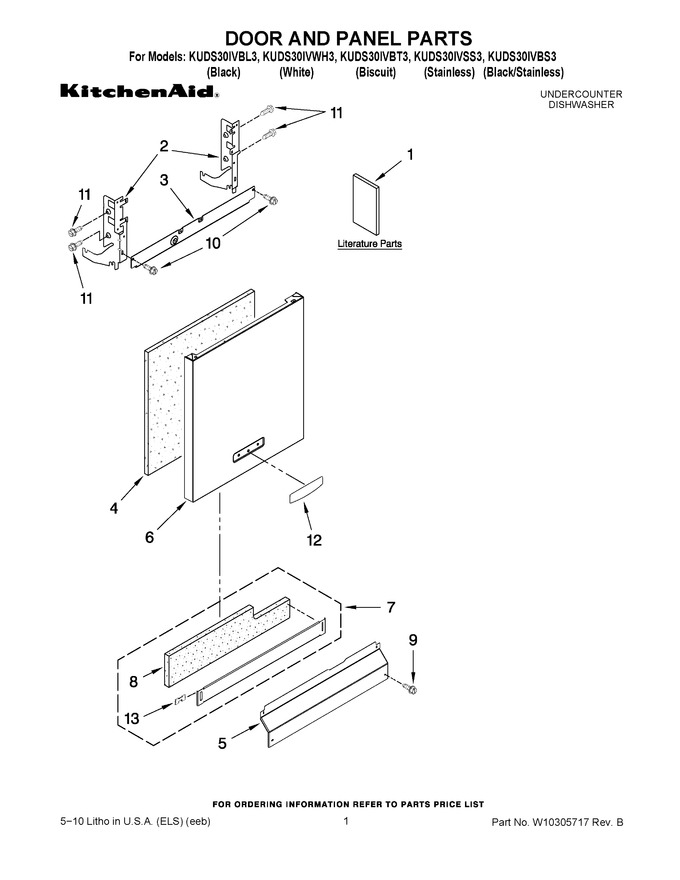

Diagram for KUDS30IVSS3
