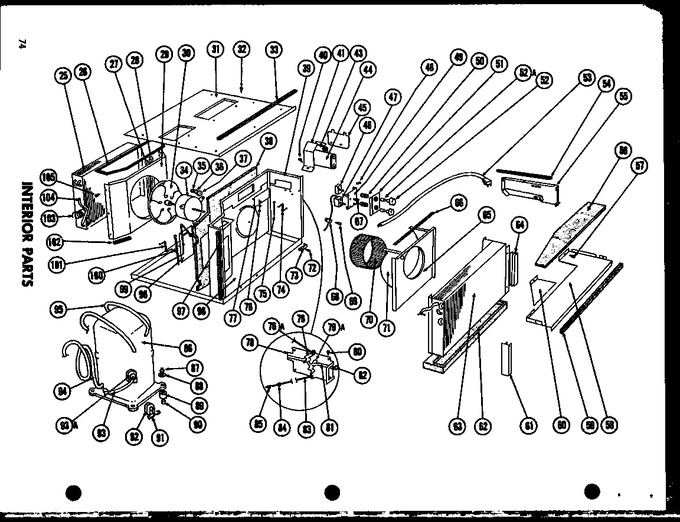

01 - Interior Parts


02 - Page 7


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
25	D5421901		Condenser Coil Assembly		Appelez-nous	-
26	A3030302		Gasket		Appelez-nous	-
27	B5171601		Screen		Appelez-nous	-
28	B4734713		Gasket Pad, Condensate Anti-sp		Appelez-nous	-
29	D5426502		Fan Shroud		Appelez-nous	-
30	C5831902		Fan Blade-cond		Appelez-nous	-
31	D5421101		Cover, Top		Appelez-nous	-
32	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
33	A3030302		Gasket		Appelez-nous	-
34	C5834203		Motor, Fan, Alt. Emerson. K55h		Appelez-nous	-
35	M0270519		Washer		Appelez-nous	-
35	M0270504		Washer		Appelez-nous	-
36	M0282009		Nut				$ 14.07
37	M0500502		Grommet, Fan Motor Mounting		Appelez-nous	-
38	D5426601		Insulation		Appelez-nous	-
39	D5426101		Weldment, Partition Panel		Appelez-nous	-
40	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
41	B5170101		Bale Strap, Capacitor		Appelez-nous	-
43	C5825011		Capacitor, Fan Motor Run, 75 M		Appelez-nous	-
44	C5825020		Capacitor, Compressor Run, 35		Appelez-nous	-
45	B5170201		Panel, Control Side, Access		Appelez-nous	-
46	B5108802		Switch, Rotary		Appelez-nous	-
47	B5103801		Thermostat		Appelez-nous	-
48	M0232012		Screw		Appelez-nous	-
49	B5170001		Bracket		Appelez-nous	-
50	A4663601		Spring		Appelez-nous	-
51	B5172101		Escutcheon		Appelez-nous	-
52	D7009804		Knob		Appelez-nous	-
52	YM0115901		Clip, Knob Mounting		Appelez-nous	-
53	C5283102		Cord Set, Unit Power		Appelez-nous	-
54	A3030302		Gasket		Appelez-nous	-
55	B5169901		Wldmt,control Brkt		Appelez-nous	-
56	B5173001		Insulation		Appelez-nous	-
57	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
58	D5421201		Cover Evap		Appelez-nous	-
59	A3030302		Gasket		Appelez-nous	-
60	B5174401		Panel Ext Wld		Appelez-nous	-
61	B5131901		Retainer		Appelez-nous	-
62	D5422301		Filler Block, Evap		Appelez-nous	-
63	D5420001		Evaporator Assy		Appelez-nous	-
64	B5178401		Filter Retainer		Appelez-nous	-
65	D5421301		Inlet Panel		Appelez-nous	-
66	A3030302		Gasket		Appelez-nous	-
67	WP488130		Nut   (Replaces: M0282007)				$ 7.32
68	M0102101		Clamp		Appelez-nous	-
69	M0255015		Sems Fastner		Appelez-nous	-
70	D5423601		Blower Wheel, Use D54236-2 For		Appelez-nous	-
71	D5422201		Scroll		Appelez-nous	-
72	M0282009		Nut				$ 14.07
73	M0102101		Clamp		Appelez-nous	-
74	B5175301		Spring		Appelez-nous	-
75	A4645902		Hinge Pin		Appelez-nous	-
76	M0540101		Cap, Hinge Pin		Appelez-nous	-
77	B5172401		Damper Door		Appelez-nous	-
78	A4659701		Rod		Appelez-nous	-
78	B5175401		Plate Cam Bearing		Appelez-nous	-
79	A4659601		Cam, Fresh Air Rod		Appelez-nous	-
79	A4659901		Cam, Exhaust Air Rod		Appelez-nous	-
80	M0250629		Screw		Appelez-nous	-
80	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
81	B5175201		Cam, Lever, Damper Door		Appelez-nous	-
82	A4660301		Knob		Appelez-nous	-
83	A4659801		Rod		Appelez-nous	-
84	M0280114		Nut,acorn		Appelez-nous	-
85	M0280114		Nut,acorn		Appelez-nous	-
86	D5340403		Compressor - Copeland		Appelez-nous	-
87	M0283610		Nut		Appelez-nous	-
89	B5105101		Grommet		Appelez-nous	-
90	A4640701		Spacer Comp. Mtg.		Appelez-nous	-
91	A4594001		Bale Strap		Appelez-nous	-
92	B5102801		Cover		Appelez-nous	-
93	C5835003		Wiring Harness		Appelez-nous	-
93	B5126701		Spring		Appelez-nous	-
94	B5173801		Tube, Discharge		Appelez-nous	-
95	C5833601		Tube, Suction		Appelez-nous	-
96	D5422103		Base Pan Wldmt		Appelez-nous	-
96	D5422104		Base Pan Wldmt		Appelez-nous	-
97	A3030325		Gasket, Closure Plate Flange,		Appelez-nous	-
98	B5172301		Damper Door		Appelez-nous	-
99	A4660201		Lever		Appelez-nous	-
100	A4645903		Hinge Pin		Appelez-nous	-
101	B5175301		Spring		Appelez-nous	-
103	B5159301		Strainer		Appelez-nous	-
104	C5835101		Capillary Preform		Appelez-nous	-
105	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
NI	A4622703		Sleeve		Appelez-nous	-
NI	M0570301		Plug Button		Appelez-nous	-
NI	M0291601		Nut, Weldment		Appelez-nous	-
NI	M0110501		Clip K		Appelez-nous	-
NI	M0286003		Nut A		Appelez-nous	-
NI	M0273607		Washer-spring		Appelez-nous	-
NI	A4664701		Bumper,door		Appelez-nous	-
NI	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
NI	M0235026		Weld Screw		Appelez-nous	-
NI	M0288302		Speed Nut		Appelez-nous	-
NI	M0570401		Grommet		Appelez-nous	-
NI	M0206116		Screw		Appelez-nous	-
NI	Y052721		Nut   (Replaces: M0281006)				$ 24.95
NI	M0585001		Clip, Wiring Harness		Appelez-nous	-
NI	A3030307		Gasket		Appelez-nous	-
NI	M0235908		Screw		Appelez-nous	-
NI	A4594101		Gasket		Appelez-nous	-
NI	B4793406		Screen, Fresh Air Door		Appelez-nous	-
NI	B5170301		Insulation		Appelez-nous	-
NI	M0286301		Speed Nut		Appelez-nous	-
NI	M0500105		Grommet		Appelez-nous	-
NI	WPW10339879		Tie K   (Replaces: M0321201)				$ 8.30
NI	WP488130		Nut   (Replaces: M0282007)				$ 7.32
NI	A4658801		Insulation		Appelez-nous	-
NI	A3030330		Gasket,per Ft		Appelez-nous	-
NI	B5107608		Gasket		Appelez-nous	-
NI	M0270508		Washer		Appelez-nous	-
NI	D4976635		Overload		Appelez-nous	-
NI	B5107613		Gasket		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
NI	B4793405		Screen		Appelez-nous	-
