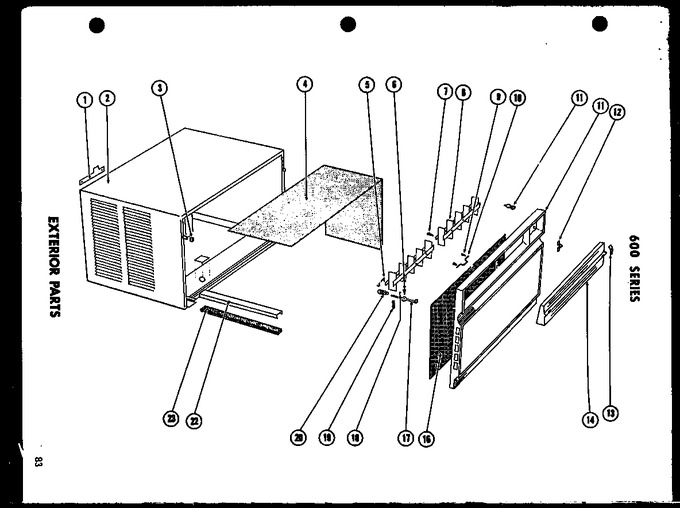

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B4115501		Nameplate		Appelez-nous	-
2	D5421001		Outer Case		Appelez-nous	-
3	A4577802		Hook, Cabinet Front Frame Bott		Appelez-nous	-
4	A4654301		Insulation, Outer Case Sides &		Appelez-nous	-
5	A4623801		Linkage Bar		Appelez-nous	-
6	M0590201		Clinch		Appelez-nous	-
7	M0229004		Screw		Appelez-nous	-
8	C5832001		Louver		Appelez-nous	-
9	M0229004		Screw		Appelez-nous	-
10	B5167101		Pin		Appelez-nous	-
11	D5424106		Front, Cabinet		Appelez-nous	-
11	A4660001		Strike		Appelez-nous	-
11	D5429209		Assembly, Cabinet Front, Louve		Appelez-nous	-
12	M0100306		Clip		Appelez-nous	-
13	A4664503		Friction Clip		Appelez-nous	-
14	D5434403		Horizontal, Louver Box		Appelez-nous	-
16	D5427301		Filter		Appelez-nous	-
17	A4655303		Lever, Vertical Louver, Direct		Appelez-nous	-
18	M0229004		Screw		Appelez-nous	-
19	A4623501		Pin,lever		Appelez-nous	-
20	A4624102		Spring,lever		Appelez-nous	-
22	B5169801		Glide		Appelez-nous	-
23	A4591107		Gasket, Polyethylene, Outer Ca		Appelez-nous	-
24	M0234802		Thumb Screw K		Appelez-nous	-
NI	M0229004		Screw		Appelez-nous	-
NI	M0288407		Speed Nut		Appelez-nous	-
NI	A4672801		Retainer, Pin		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58

    View Diagram in Separate Window       Print Part List
