01 - Backguard Assy


02 - Broiler Door Assy


03 - Cabinet Assy


04 - Oven Components


05 - Oven Door

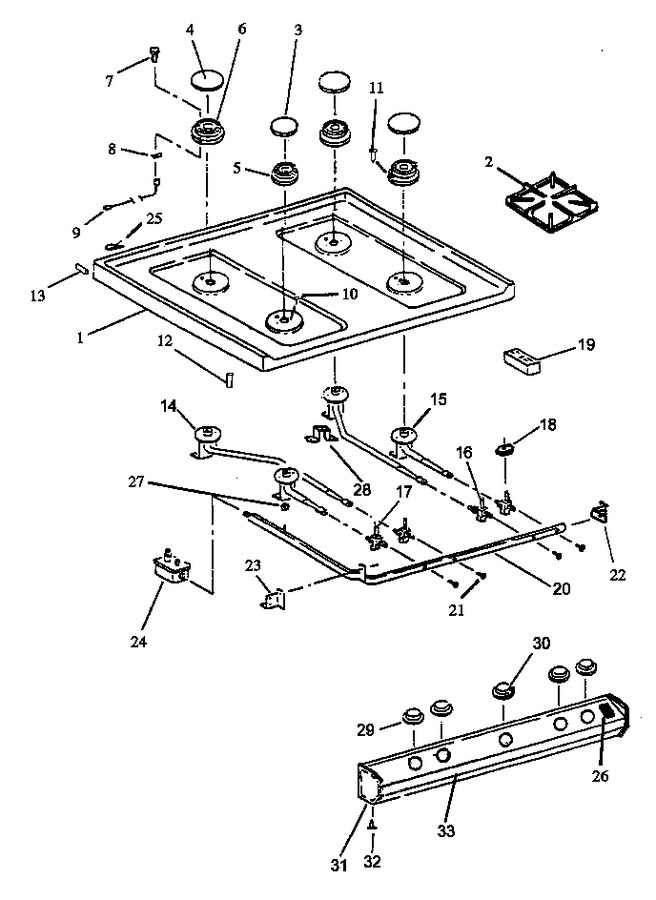

06 - Top Burner Assy(models 2 Thru 8)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y06517907L		Main Top Almond		Appelez-nous	-
2	314651B		Grate		Appelez-nous	-
3	303534B		Cap, Burner (small)		Appelez-nous	-
4	303536B		Burner Cap, Large (blk)		Appelez-nous	-
5	Y0306073		Burner 3`` Die Cast		Appelez-nous	-
6	Y0306074		Burner, 4`` Cast		Appelez-nous	-
7	Y0309358		Assy, Electrode		Appelez-nous	-
8	Y07714200		Clip, Electrode		Appelez-nous	-
9	Y07714800		Harness, Wire (ignitor)		Appelez-nous	-
10	Y0310036		Screw, Stud		Appelez-nous	-
11	WPW10348409		Mounting Screw   (Replaces: Y07717600)			Immediately	$ 8.20
12	Y0310036		Screw, Stud		Appelez-nous	-
13	Y0310036		Screw, Stud		Appelez-nous	-
14	Y0312961		Venturi Assy Rear		Appelez-nous	-
15	Y0312960		Venturi Assy Front		Appelez-nous	-
16	Y07596400		Valve, Gas		Appelez-nous	-
17	Y0312976		Valve 90 L.f.		Appelez-nous	-
18	WP4157180		Switch, Spark Valve   (Replaces: Y07455200)				$ 119.66
19	Y0306035		Spark Module		Appelez-nous	-
19	Y07725000		Module, 2+1 Spark		Appelez-nous	-
20	Y07683700		Pipe, Mnfd. 30``		Appelez-nous	-
21	Y0056115		Surface Valve Bolt& Gasket		Appelez-nous	-
22	0311810		Bracket, Manifold Support		Appelez-nous	-
23	Y0311811		Bracket, Manifold Support		Appelez-nous	-
24	Y0088783		Pressure Regulator		Appelez-nous	-
25	Y0310032		Nut, Speed, Flat		Appelez-nous	-
26	Y07634800		Switch, Rocker		Appelez-nous	-
27	0088650		Square Nut {j}		Appelez-nous	-
28	0312950		Bracket Venturi		Appelez-nous	-
29	Y07589200		Knob Top Burner				$ 18.03
30	Y0055029		Knob, Thermostat		Appelez-nous	-
31	0311855		End Cap, L.h.		Appelez-nous	-
31	Y0311854		End Cap, R.h.		Appelez-nous	-
32	0312238		Screw		Appelez-nous	-
33	07648405		Panel, Man, Gas		Appelez-nous	-
