Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10250003 Console Assembly (includes Active Overlay) (black) Appelez-nous -
1 W10250004 Console Assembly (includes Active Overlay) (white) Appelez-nous -
1 W10250005 Console Assembly (includes Active Overlay) (midnight Grey) Appelez-nous -
2 8546546 Clip, Bi-metal Special Order $ 7.82

3 W10258275 Bi-metal   (Replaces: 661663) In-Stock Immediately $ 41.71

4 W10255029 Switch, Door Appelez-nous -
5 WPW10348409 Screw   (Replaces: 3369051) In-Stock Immediately $ 8.20

6 WPW10404412 Latch Assembly   (Replaces: W10077360) In-Stock Immediately $ 85.50

7 WPW10285179 Control, Electronic   (Replaces: W10285179) In-Stock Immediately $ 316.68

8 WP8531873 Board, Interconnect   (Replaces: 8531873) In-Stock Immediately $ 190.07

9 8531877 Cable, Ribbon Special Order $ 66.48


    View Diagram in Separate Window     Print Icon   Print Part List

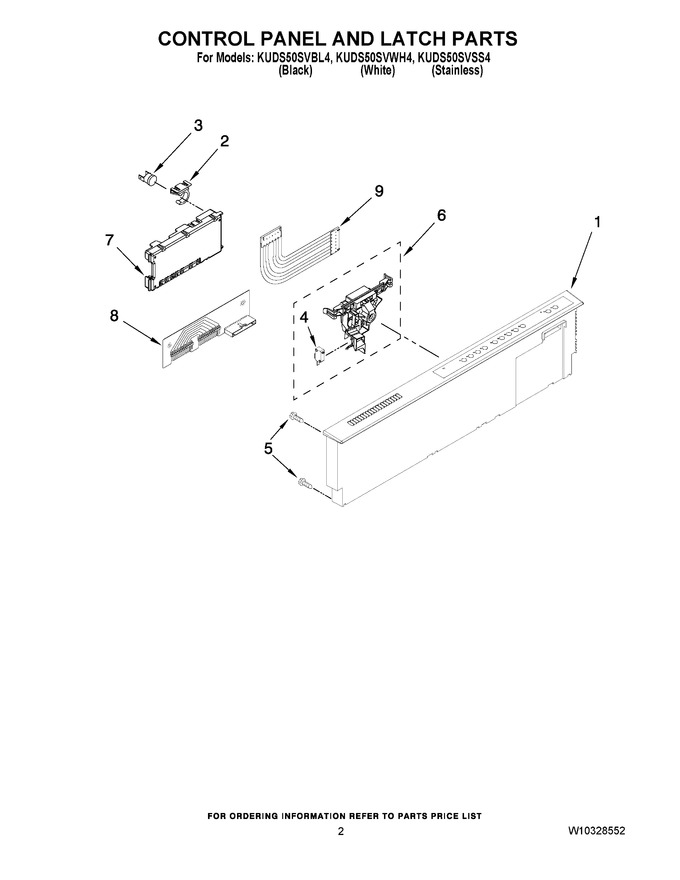

Diagram for KUDS50SVBL4
