SELECT A DIAGRAM

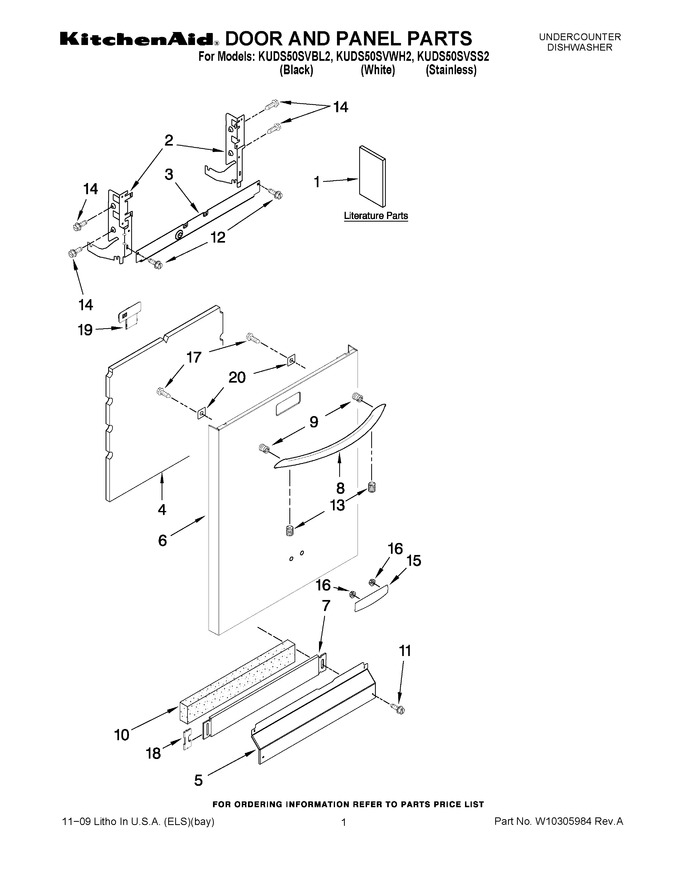

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm And Strainer Parts


12 - Third Level Rack And Track Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10056407		Instructions,installation		Appelez-nous	-
1	W10247455		Energy Guide		Appelez-nous	-
1	W10205938		Guide, Use & Care (spanish)		Appelez-nous	-
1	W10205937		Guide, Use & Care English & French		Appelez-nous	-
1	W10142800		Tech Sheet		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 142.24
3	8268983		Stiffener, Door				$ 38.77
4	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
5	WPW10441007		Access Panel (white)   (Replaces: 8573256)				$ 170.94
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 42.25
6	W10137622		Panel, Full Front (includes Items 4, 9, 15 & 16) (stainless)				$ 207.10
6	W10078004		Panel, Full Front (includes Items 4, 9, 15 & 16) (white)				$ 127.28
6	W10078003		Panel, Full Front (includes Items 4, 9, 15 & 16) (black)				$ 122.42
7	WPW10586591		Toe Panel Includes Items 10 & 18) (white)   (Replaces: 8558253)				$ 309.39
7	W10871196		Toe Panel Includes Items 10 & 18) (black)   (Replaces: 8558252)				$ 174.04
8	W10257147		Handle (includes Items 13) (white)				$ 42.68
8	W10257145		Handle (includes Items 13) (stainless)				$ 55.36
8	W10257146		Handle (includes Items 13) (black)				$ 42.06
9	WP8564951		Stud, Mounting   (Replaces: 8564951)			Immediately	$ 19.33
10	W10831329		Insulation Toe Panel   (Replaces: 8268581)			Immediately	$ 43.30
11	WP302868		Screw Black   (Replaces: 302868)			Immediately	$ 8.18
11	WP3400836		Screw (white)   (Replaces: 3400836)				$ 8.10
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
13	WP8534008		Screw   (Replaces: 8534008)				$ 9.37
14	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
15	W10021850		Nameplate (stainless)				$ 62.01
15	W10021870		Nameplate (white)				$ 128.26
15	W10021860		Nameplate (black)				$ 109.94
16	WP2004333		Nut   (Replaces: 2004333)				$ 11.24
17	W10123421		Screw				$ 12.83
18	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
19	W10250156		Bezel (white)		Appelez-nous	-
19	W10250157		Bezel (stainless)		Appelez-nous	-
19	W10243167		Bezel (black)		Appelez-nous	-
20	W10133538		Plate, Backing		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
