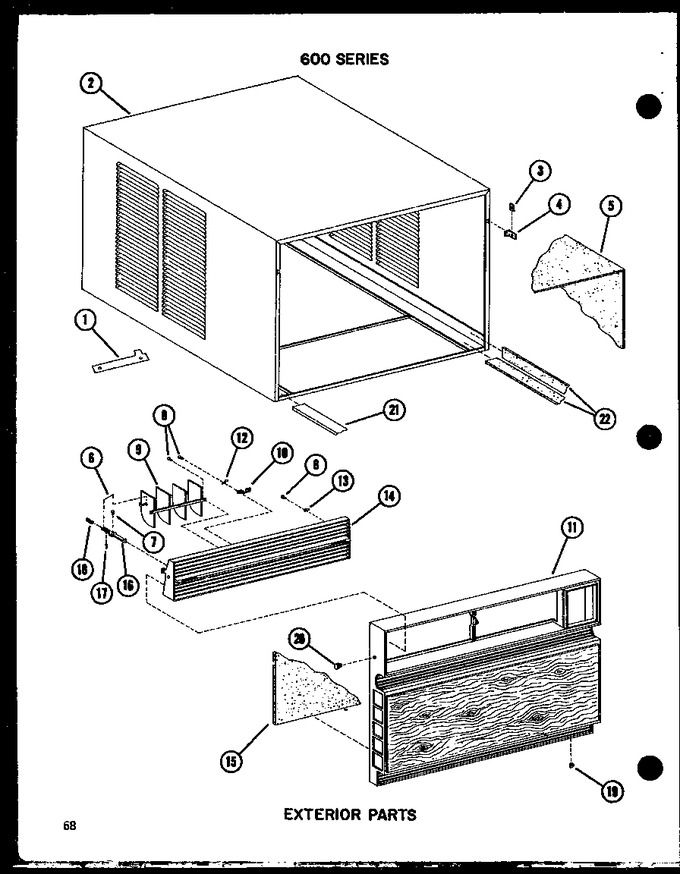

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B4115501 | Nameplate |
|
- | |||||
| 2 | D5421001 | Outer Case |
|
- | |||||
| 3 | M0288407 | Speed Nut |
|
- | |||||
| 4 | A4660001 | Strike |
|
- | |||||
| 5 | A4654303 | Insulation |
|
- | |||||
| 5 | A4654301 | Insulation, Outer Case Sides & |
|
- | |||||
| 5 | A4654304 | Insulation |
|
- | |||||
| 6 | A4623801 | Linkage Bar |
|
- | |||||
| 7 | M0590201 | Clinch |
|
- | |||||
| 8 | M0229004 | Screw |
|
- | |||||
| 9 | C5832001 | Louver |
|
- | |||||
| 10 | B5167101 | Pin |
|
- | |||||
| 11 | D5429219 | Assy, Front |
|
- | |||||
| 11 | D5424119 | Front |
|
- | |||||
| 12 | A4664503 | Friction Clip |
|
- | |||||
| 13 | A4672801 | Retainer, Pin |
|
- | |||||
| 14 | D5434409 | Louver Horiz |
|
- | |||||
| 15 | D5427302 | Filter |
|
- | |||||
| 16 | A4655303 | Lever, Vertical Louver, Direct |
|
- | |||||
| 17 | A4623501 | Pin,lever |
|
- | |||||
| 18 | A4624102 | Spring,lever |
|
- | |||||
| 19 | A4577804 | Hook |
|
- | |||||
| 20 | M0234816 | Thumb Screw K |
|
- | |||||
| 21 | B5169801 | Glide |
|
- | |||||
| 22 | A4591107 | Gasket, Polyethylene, Outer Ca |
|
- | |||||
| 22 | A4591115 | Gasket |
|
- |
