Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11842830 Dishrack, Upper   (Replaces: 8561731) In-Stock Immediately $ 179.58

2 W10728563 Housing, Adjuster   (Replaces: W10082839) Special Order $ 15.87

3 W10077839 Actuator, Adjuster (left Hand) Special Order $ 38.28

3 W10077838 Actuator, Adjuster (right Hand) Special Order $ 37.92

4 W10728567 Adjuster Assembly   (Replaces: 8268653) Special Order $ 194.00

5 WP8270138 Wheel   (Replaces: 8270138) In-Stock Immediately $ 11.88

6 WP8268703 Axel, Adjuster   (Replaces: 8268703) In-Stock Immediately $ 11.28

7 8281156 Screw Special Order $ 5.83

8 W10727426 Tine Row   (Replaces: 8562030) In-Stock Immediately $ 85.10

9 WPW10082853 Clip, Pivot   (Replaces: W10082853) In-Stock Immediately $ 5.40

10 WP8539103 Positioner, Multi   (Replaces: 8539103) Special Order $ 97.02

11 8539149 Insert, Fold Down Tines Special Order $ 32.75

12 WP8539102 Positioner, Dual   (Replaces: 8539102) Special Order $ 103.88

13 8539148 Clip, Insert Tines Special Order $ 19.93

14 W10728561 Cover, Adjuster   (Replaces: W10082840) Special Order $ 20.53

15 WP9741232 Retainer   (Replaces: 9741232) In-Stock Immediately $ 5.07

16 W10728566 Positioner, Arm   (Replaces: W10082834) In-Stock Immediately $ 8.22

17 WPW10077844 Clip, No Flip   (Replaces: W10077844) In-Stock Immediately $ 11.45

18 W10077851 Track, Assembly (left Hand (also Order Item 21)) Appelez-nous -
18 W10077852 Track, Assembly (right Hand) Appelez-nous -
19 W10077876 Mount, Track (also Order Item 21) Special Order $ 33.42

20 W10077848 Stop, Track (right) Special Order $ 29.02

20 W10077847 Stop, Track (left) Special Order $ 31.64

21 WP9743002 Gasket, Bracket Mounting   (Replaces: 9743002) In-Stock Immediately $ 10.04

22 WPW10348407 Screw   (Replaces: 3400072) Special Order $ 8.06

23 8539110 Handle, Dishrack Appelez-nous -
24 W10077958 Cupshelf Assembly Appelez-nous -
25 8562026 Clip, Cupshelf Special Order $ 101.18

26 W10077843 Indicator, Cupshelf Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

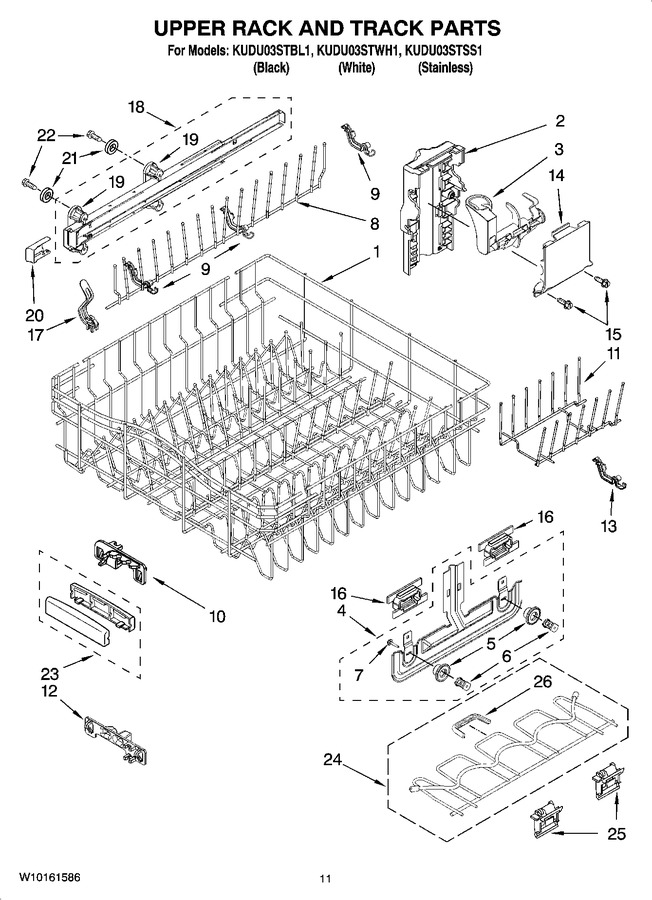

Diagram for KUDU03STBL1
