Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9742938 Control, Overfill Assembly (also Order Item 14) Appelez-nous -
2 9742727 Hose, Inlet Special Order $ 40.94

3 9742783 Water Inlet Assembly (includes Items 4 & 5) Appelez-nous -
4 9742787 Gasket Special Order $ 5.83

5 9742786 Bezel, Inlet Appelez-nous -
6 WP596669 Clamp, Hose   (Replaces: 301958) In-Stock Immediately $ 8.82

7 W10844024 Fill Valve Assembly   (Replaces: 9743175) In-Stock Immediately $ 96.30

8 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

10 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

11 9740811 Switch, Overfill Control Appelez-nous -
12 9742937 Standpipe, Overfill Appelez-nous -
13 WP8531743 Gasket, Flat   (Replaces: 4161670) In-Stock Immediately $ 47.27

14 4161596 Nut, Standpipe Appelez-nous -
15 9743070 Float & Retainer Assembly Special Order $ 57.63

16 4171116 Lever, Overflow Switch Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

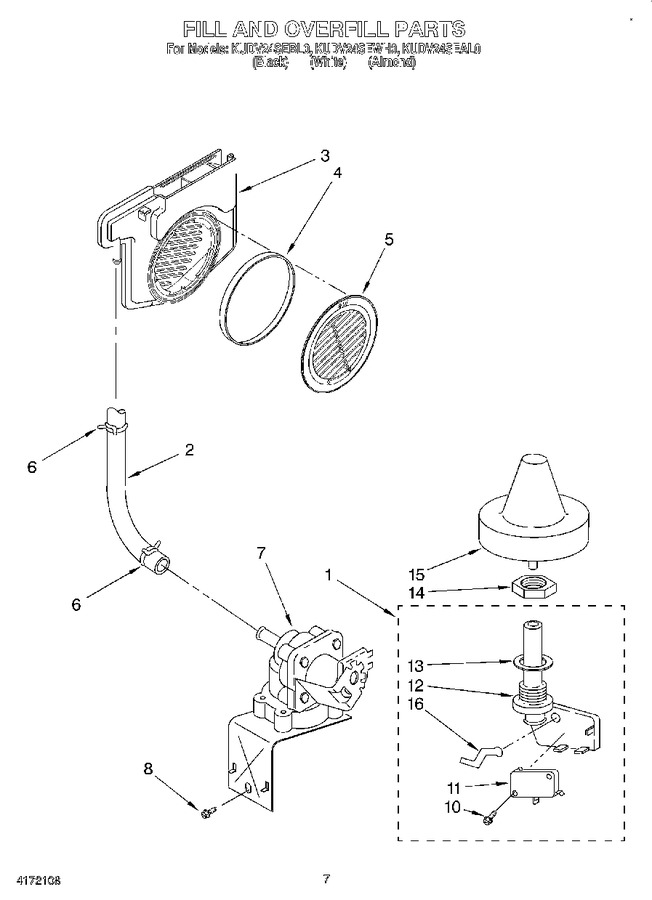

Diagram for KUDV24SEAL0
