SELECT A DIAGRAM

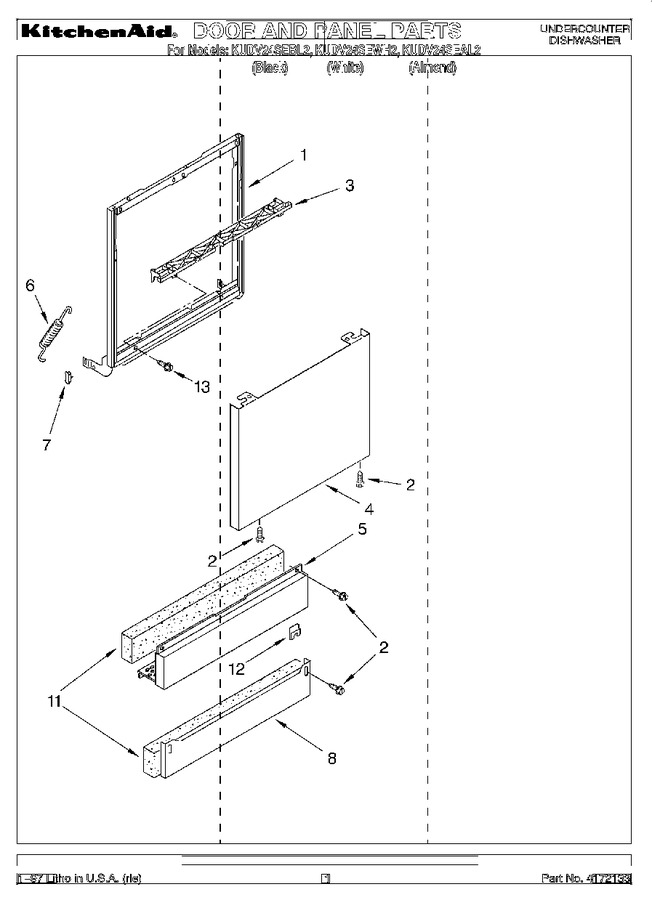

01 - Door And Panel


02 - Control Panel


03 - Door And Latch


04 - Lower Washarm And Strainer


05 - Heater


06 - Fill And Overfill


07 - Upper Wash And Rinse


08 - Tub And Frame


09 - Pump And Motor


10 - Upper Rack And Track


11 - Lower Rack


12 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9743028		Door Frame				$ 62.19
2	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
3	9742964		Stiffener, Door		Appelez-nous	-
4	3379377		Panel Front (almond Model)		Appelez-nous	-
4	3379375		Panel Front (black Model)				$ 115.07
4	3379376		Panel Front (white Model)				$ 116.81
5	9742857		Access Panel & Clip Assembly (includes Items 11 & 12) (almond Model)		Appelez-nous	-
5	9742856		Access Panel & Clip Assembly (includes Items 11 & 12) (white Model)		Appelez-nous	-
5	9742645		Access Panel & Clip Assembly (includes Items 11 & 12) (black Model)		Appelez-nous	-
6	WP9743986		Spring, Door (2)   (Replaces: 3379643)			Immediately	$ 29.69
7	WP3373234		Bushing, Spring Door (2)   (Replaces: 3373234)				$ 11.01
8	3375423		Toe Panel (includes Item 11) (black Model)		Appelez-nous	-
8	9742869		Toe Panel (includes Item 11) (white Model)		Appelez-nous	-
8	9742870		Toe Panel (includes Item 11) (almond Model)		Appelez-nous	-
11	3374767		Insulation		Appelez-nous	-
12	3378123		Clip, Grounding				$ 7.79
13	WP308685		Screw (2)   (Replaces: 3367670)			Immediately	$ 7.87

    View Diagram in Separate Window       Print Part List
