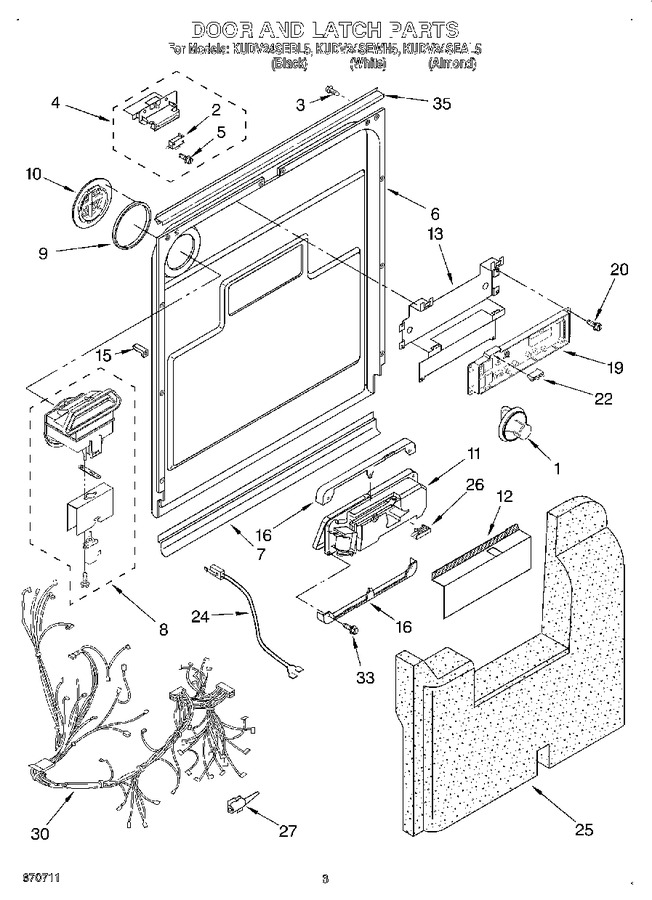

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9743399		Cap, Dispenser				$ 23.33
2	3369325		Shield, Switch		Appelez-nous	-
3	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 8.20
4	3380654		Latch, Bolt Assy. (includes Item 2)				$ 74.75
5	3400404		Screw		Appelez-nous	-
6	9742353		Inner Door Mastic Assembly (also Includes Items 7, 9 & 10)		Appelez-nous	-
7	4172127		Seal, Door Lower   (Replaces: 9743542)			Immediately	$ 73.51
8	9742770		Vent Assembly (also Order Item 9)		Appelez-nous	-
9	9742782		Gasket, Vent				$ 11.24
10	9742780		Deflector, Vent (also Order Item 9)		Appelez-nous	-
11	WPW10616003		Dispenser, Assembly   (Replaces: 9742629)				$ 285.48
12	9743450		Shield, Dispenser		Appelez-nous	-
13	9742623		Bracket, Controls		Appelez-nous	-
15	9743487		Guide, Door		Appelez-nous	-
16	9743486		Bracket, Dispenser (2)		Appelez-nous	-
19	8051136		Control, Electronic				$ 208.71
20	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 7.55
22	9743451		Fuse Thermal Electronic		Appelez-nous	-
24	9743447		Dispenser, Wiring Harness		Appelez-nous	-
25	9742397		Sound Absorber		Appelez-nous	-
26	9742852		Sensor, Rinse Aid		Appelez-nous	-
27	3376405		Elbow, Harness				$ 14.02
30	9743981		Wiring Harness, Main		Appelez-nous	-
33	3400700		Screw (6)		Appelez-nous	-
35	9743806		Seal, Console/door				$ 22.34

    View Diagram in Separate Window       Print Part List
