01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Third Level Rack And Track Parts


11 - Upper Wash And Rinse Parts


12 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

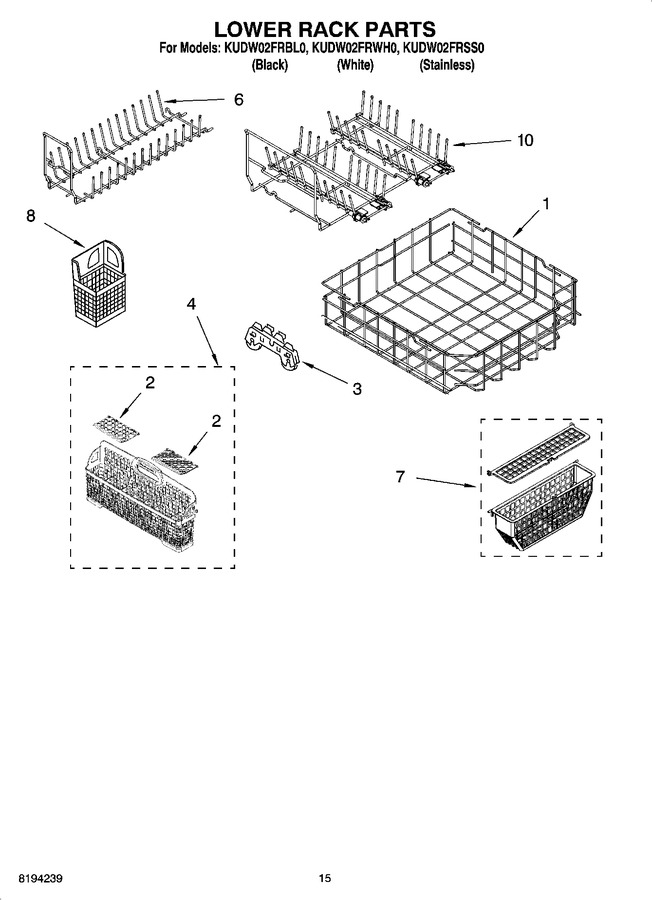

1	W11838895		Lower Rack Assembly   (Replaces: 8561733)				$ 168.95
2	8519695		Lid, Basket Silverware (left Side)				$ 23.73
2	8519663		Lid, Basket Silverware (right Side)				$ 90.18
3	WP8268713		Wheel & Transport Assembly   (Replaces: 8268713)				$ 90.45
4	WPW10190415		Basket, Silverware   (Replaces: 8562044)			Immediately	$ 99.05
6	8562013		Insert, Large		Appelez-nous	-
7	8562053		Basket-small Items		Appelez-nous	-
8	8519702		Basket-utensil				$ 39.71
10	WPW10086340		Insert, Double   (Replaces: 8562012)				$ 242.71
	8171477		Floor Mount Kit				$ 52.58
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	N/A		Anti-tip Kit		Appelez-nous	-
	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
	8171656		Accessories Side Panel Kits (white)				$ 418.17
	8171657		Accessories Side Panel Kits (black)				$ 625.77
	8171658		Accessories Side Panel Kits (biscuit)		Appelez-nous	-
	8171659		Accessories Side Panel Kits (stainless Steel Color Panel Kits)				$ 705.00
	4396401		Accessories Side Panel Kits (black)		Appelez-nous	-
	4396402		Accessories Side Panel Kits (white)		Appelez-nous	-
	4396403		Accessories Side Panel Kits (biscuit)		Appelez-nous	-
	4396404		Accessories Side Panel Kits (cobalt Blue)		Appelez-nous	-
	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
	4396405		Accessories Side Panel Kits (hunter Green)		Appelez-nous	-
	4396406		Accessories Side Panel Kits (empire Red)		Appelez-nous	-
	4396407		Accessories Side Panel Kits (majestic Yellow)		Appelez-nous	-
	4396655		Accessories Side Panel Kits (for Use With 6`` Clearance App.)		Appelez-nous	-
	4392899		Accessories Side Panel Kits Optional Parts Not Included Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 26.45
	8171571		Accessories Side Panel Kits Optional Parts Not Included Paint, Touch-up (1/2oz.) (cobalt Blue)				$ 30.53
	8171651		Accessories Side Panel Kits Optional Parts Not Included Paint, Touch-up (1/2oz.) (hunter Green)				$ 20.17
	8171652		Accessories Side Panel Kits Optional Parts Not Included Paint, Touch-up (1/2oz.) (empire Red)				$ 30.22
	8171653		Accessories Side Panel Kits Optional Parts Not Included Paint, Touch-up (1/2oz.) (majestic Yellow)		Appelez-nous	-
	W10202939		Accessories Side Panel Kits Optional Parts Not Included Paint, Touch-up (1/2oz.) (meteorite)   (Replaces: 4396603)				$ 24.98
	8171573		Accessories Side Panel Kits Paint, Pressurized Spray (12 Oz.) (cobalt Blue)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	285006		Accessories Side Panel Kits Paint, Pressurized Spray (12 Oz.) (superior Black)				$ 57.04
	4396269		Accessories Side Panel Kits Paint, Pressurized Spray (12 Oz.) (hunter Green)		Appelez-nous	-
	4396267		Accessories Side Panel Kits Paint, Pressurized Spray (12 Oz.) (empire Red)		Appelez-nous	-
	4396268		Accessories Side Panel Kits Paint, Pressurized Spray (12 Oz.) (majestic Yellow)		Appelez-nous	-
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
	4317824		Power Cord Kit (includes Powercord & Misc.hardware)			Immediately	$ 19.77

    View Diagram in Separate Window       Print Part List
