SELECT A DIAGRAM

01 - Cabinet Parts

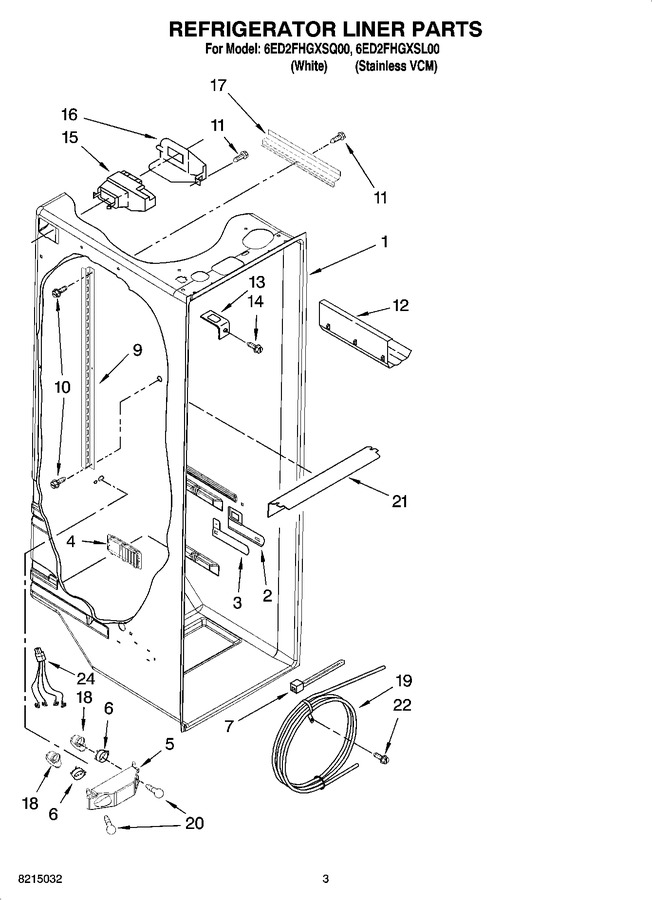

02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2194744		Escutcheon, Meat Pan Control				$ 91.28
3	2182757		Slide Meat Pan Control				$ 75.15
4	2257741		Louver		Appelez-nous	-
5	2256035		Bracket, Dual Crisper Light				$ 62.54
6	WP2175210		Shroud, Light   (Replaces: 2169193)				$ 82.61
7	WP2205813		Wire Tie   (Replaces: 2205813)				$ 7.72
9	2206270		Shelf Ladder		Appelez-nous	-
10	WP489478		Screw   (Replaces: 489478)				$ 7.75
11	W10759522		Screw (2)   (Replaces: W10004810)				$ 7.75
12	W10777924		Rack, Wine & Egg   (Replaces: 2179404K)				$ 23.60
13	WP2256085		Bracket Retainer   (Replaces: 2256085)				$ 34.38
14	WP488488		Screw   (Replaces: 489290)				$ 7.68
15	WPW10129864		Air Diffuser Assembly   (Replaces: 2209752)				$ 344.30
16	WP2212240		Air Diffuser Cover   (Replaces: 2212240)				$ 131.57
17	2150331		Cover, Conduit				$ 24.40
18	4387478		Socket   (Replaces: 2317419)			Immediately	$ 110.16
19	WP2256126		Reservoir   (Replaces: 2256126)				$ 168.85
20	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
21	2209769		Light Lens		Appelez-nous	-
22	488280		Screw (2)		Appelez-nous	-
24	2311637		Wire Harness, Crisper Light   (Replaces: 2256037)				$ 140.23

    View Diagram in Separate Window       Print Part List
