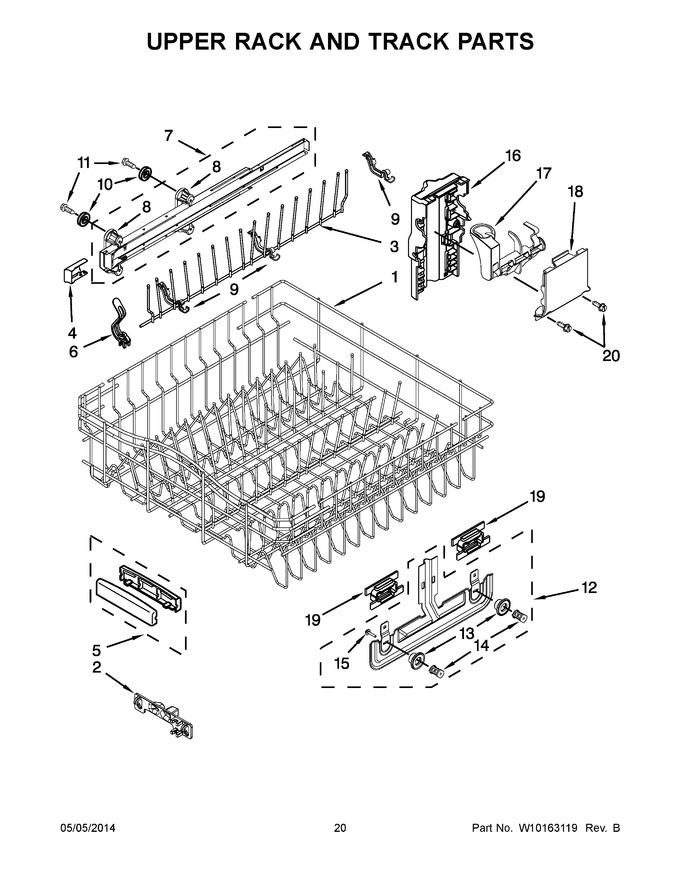

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: 8539235) |
|
Immediately | $ 161.62 | ||||
| 2 | WP8539102 | Positioner, Dual Dishrack (Replaces: 8539102) |
|
$ 93.49 | |||||
| 3 | W10727426 | Tine Row, Fold Down (Replaces: 9744566) |
|
Immediately | $ 76.59 | ||||
| 4 | WPW10247512 | Stop, Track (left Hand) (Replaces: W10078217) |
|
$ 249.88 | |||||
| 4 | WPW10247511 | Stop, Track (right Hand) (Replaces: W10078218) |
|
$ 273.04 | |||||
| 5 | 8539110 | Handle, Dishrack |
|
- | |||||
| 6 | WPW10077844 | Clip, No Flip (Replaces: W10077844) |
|
Immediately | $ 10.31 | ||||
| 7 | WPW10247512 | Track Assembly (also Order Item No.10) (left Hand) (Replaces: W10078217) |
|
$ 249.88 | |||||
| 7 | WPW10247511 | Track Assembly (also Order Item No.10) (right Hand) (Replaces: W10078218) |
|
$ 273.04 | |||||
| 8 | W10077876 | Mount, Track |
|
$ 33.42 | |||||
| 9 | WPW10082853 | Clip, Pivot (Replaces: W10082853) |
|
Immediately | $ 6.01 | ||||
| 10 | WP9743002 | Gasket, Mounting Bracket (Replaces: 9743002) |
|
Immediately | $ 9.04 | ||||
| 11 | WPW10348407 | Screw (Replaces: 3400072) |
|
$ 7.25 | |||||
| 12 | W10728567 | Adjuster Assembly (Replaces: 8268653) |
|
$ 174.60 | |||||
| 13 | WP8270138 | Wheel, Rack (Replaces: 8270138) |
|
Immediately | $ 10.69 | ||||
| 14 | WP8268703 | Axle, Adjuster (Replaces: 8268703) |
|
Immediately | $ 10.15 | ||||
| 15 | 8281156 | Screw |
|
$ 5.83 | |||||
| 16 | W10728563 | Housing, Adjuster (Replaces: W10082839) |
|
$ 14.28 | |||||
| 17 | W10077838 | Actuator, Adjuster (right Hand) |
|
$ 37.92 | |||||
| 17 | W10077839 | Actuator, Adjuster (left Hand) |
|
$ 38.28 | |||||
| 18 | W10728561 | Cover, Adjuster (Replaces: W10082840) |
|
$ 18.48 | |||||
| 19 | W10728566 | Positioner, Adjusting Arm (Replaces: W10082834) |
|
Immediately | $ 7.40 | ||||
| 20 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 4.56 |
