Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 DA97-00466Z Assy Cover-evap,fre,best-buy Appelez-nous -
3 DA39-00060K W/harness Motor Special Order $ 131.50

4 DA61-00774A Case Motor Appelez-nous -
5 DA31-00020E Motor Dc-bldc,drep3020la,fre Special Order $ 145.86

6 DA63-01146A Grommet-motor Special Order $ 7.72

7 DA34-10120E Switch Door-f;-,slide,-,-,250v In-Stock Immediately $ 44.16

8 DA63-00713A Cover-motor Special Order $ 9.41

9 DA63-40167A Grommet-cover Chil Special Order $ 2.78

10 DA31-00015C Fan-turbo Special Order $ 13.47

10 DA31-00010D Fan-ass`y In-Stock Immediately $ 24.41

10 DA61-20128A Spring-fan Special Order $ 0.94

11 555555 Evap Assy   (Replaces: DA96-00021N) Special Order $ 168.82

12 DA47-10160H Thermo Bimetal Special Order $ 79.38

13 DA32-10105R Sensor Assy In-Stock Immediately $ 38.19

14 DA47-00090C Heater Drain-fre Special Order $ 82.03


    View Diagram in Separate Window     Print Icon   Print Part List

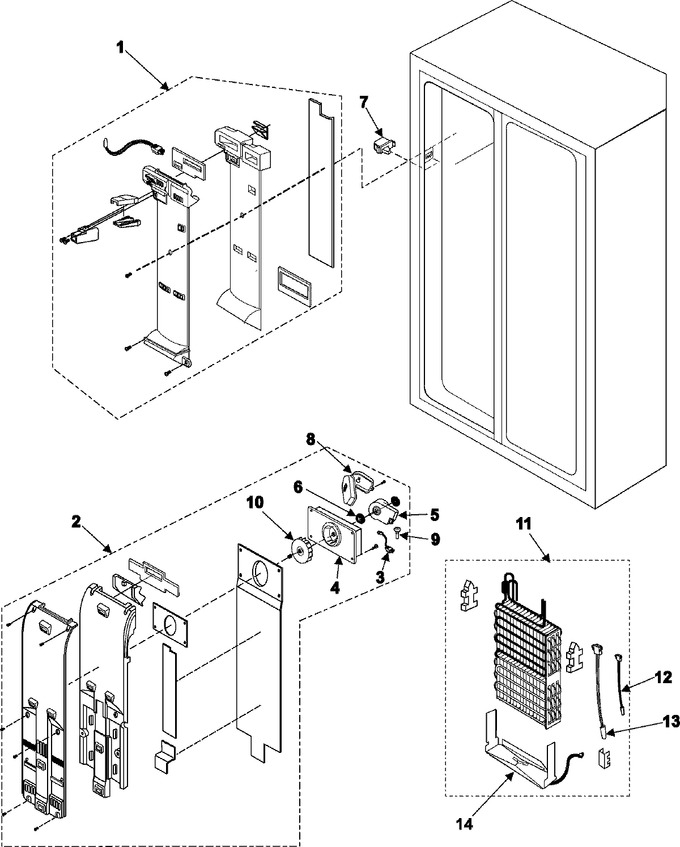

Diagram for RS253BAVQ
