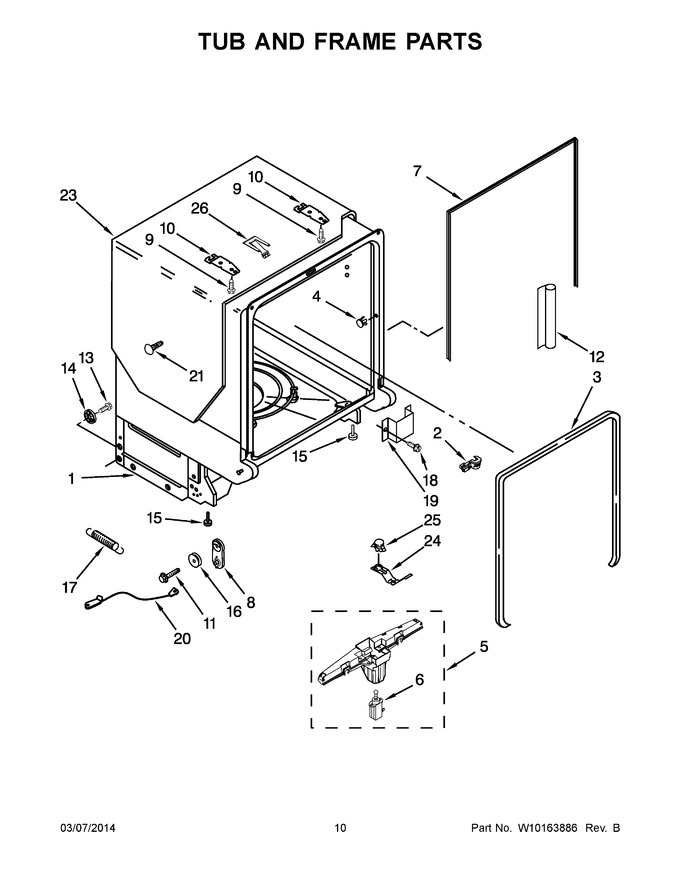

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10053090 | Tub Assembly |
|
- | |||||
| 2 | W11384788 | Relief, Strain (Replaces: 8573061) |
|
$ 22.59 | |||||
| 3 | W11196317 | Gasket, Tub (Replaces: W10112096) |
|
Immediately | $ 94.26 | ||||
| 4 | W10795980 | Plug, Tub (Replaces: W10082838) |
|
Immediately | $ 15.06 | ||||
| 5 | WP8572661 | Actuator Assembly (Replaces: 8572661) |
|
$ 144.71 | |||||
| 6 | 8559844 | Motor, Wax |
|
$ 155.69 | |||||
| 7 | W10864081 | Seal, Kit (Replaces: 8269110) |
|
Immediately | $ 84.31 | ||||
| 8 | 8194001 | Mount, Door Balance (Replaces: 8270021) |
|
Immediately | $ 43.06 | ||||
| 9 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.87 | ||||
| 10 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 19.33 | ||||
| 11 | WP3400074 | Screw (Replaces: 3400074) |
|
$ 7.55 | |||||
| 12 | 8574123 | Barrier, Moisture |
|
$ 71.34 | |||||
| 13 | 3370389 | Screw |
|
$ 5.70 | |||||
| 14 | WP8268977 | Wheel Leg (Replaces: 8268977) |
|
$ 15.19 | |||||
| 15 | 8193716 | Leg, Leveling (Replaces: 8524584) |
|
Immediately | $ 88.96 | ||||
| 16 | 8194001 | Wheel, Door Balance (Replaces: 8524474) |
|
Immediately | $ 43.06 | ||||
| 17 | WP8270020 | Spring, Door Balance (Replaces: 8270020) |
|
Immediately | $ 36.69 | ||||
| 18 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 19 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 29.53 | |||||
| 20 | 8194001 | Cable, Door Balance (Replaces: 8535568) |
|
Immediately | $ 43.06 | ||||
| 21 | WP304666 | Retainer (Replaces: 304666) |
|
$ 29.45 | |||||
| 23 | W10877094 | Shield, Sound Tub (Replaces: 8573241) |
|
$ 233.63 | |||||
| 24 | 9742648 | Bracket, Thermostat |
|
$ 51.51 | |||||
| 25 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 31.28 | ||||
| 26 | W10077370 | Strike, Plate |
|
- |
