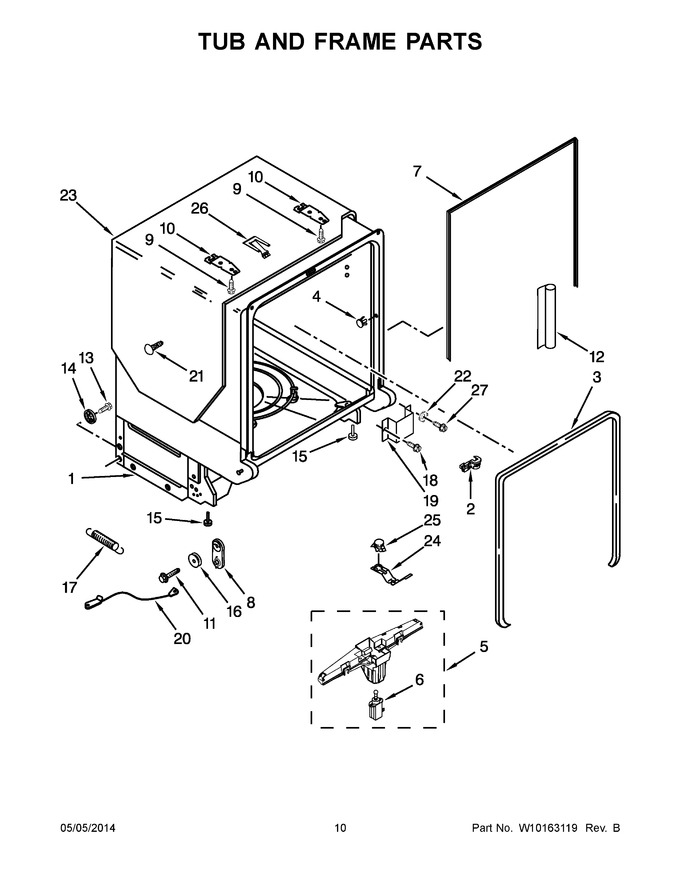

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10084283 | Tub Assembly |
|
- | |||||
| 2 | W11384788 | Relief, Strain (Replaces: 8573061) |
|
$ 20.33 | |||||
| 3 | W11196317 | Gasket, Tub (Replaces: W10112096) |
|
Immediately | $ 101.92 | ||||
| 4 | W10795980 | Plug, Tub (Replaces: W10082838) |
|
Immediately | $ 13.55 | ||||
| 5 | WP8572661 | Actuator Assembly (Replaces: 8572661) |
|
$ 130.24 | |||||
| 6 | W10082769 | Motor, Wax |
|
$ 31.64 | |||||
| 7 | W10864081 | Seal Kit (Replaces: 8269110) |
|
Immediately | $ 75.88 | ||||
| 8 | 8194001 | Mount, Door Balance (Replaces: 8270021) |
|
Immediately | $ 38.75 | ||||
| 9 | WP308685 | Screw (Replaces: 3367670) |
|
Immediately | $ 7.08 | ||||
| 10 | WP8269145 | Bracket, Undercounter (Replaces: 8269145) |
|
Immediately | $ 17.40 | ||||
| 11 | WP3400074 | Screw (Replaces: 3400074) |
|
$ 6.80 | |||||
| 12 | 8574123 | Barrier, Moisture |
|
$ 71.34 | |||||
| 13 | 3370389 | Screw |
|
$ 5.70 | |||||
| 14 | WP8268977 | Wheel, Leg (Replaces: 8268977) |
|
$ 13.67 | |||||
| 15 | 8193716 | Leg, Leveling (Replaces: 8524584) |
|
$ 80.06 | |||||
| 16 | 8194001 | Wheel, Door Balance (Replaces: 8524474) |
|
Immediately | $ 38.75 | ||||
| 17 | WP8270020 | Spring, Door Balance (Replaces: 8270020) |
|
Immediately | $ 33.02 | ||||
| 18 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.42 | |||||
| 19 | W11779375 | Cover, Terminal Box (Replaces: 8268991) |
|
$ 26.58 | |||||
| 20 | 8194001 | Cable, Door Balance (Replaces: 8535568) |
|
Immediately | $ 38.75 | ||||
| 21 | WP304666 | Retainer (Replaces: 304666) |
|
$ 26.51 | |||||
| 22 | WP3378128 | Washer, Pronged Cup (Replaces: 3378128) |
|
$ 10.63 | |||||
| 23 | W10877094 | Shield, Sound Tub (Replaces: 8573241) |
|
$ 210.27 | |||||
| 24 | 9742648 | Bracket, Thermostat |
|
$ 51.51 | |||||
| 25 | WP661566 | Thermostat (Replaces: 661566) |
|
Immediately | $ 28.15 | ||||
| 26 | W10077370 | Strike, Plate |
|
- | |||||
| 27 | WP3400014 | Screw, Grounding (Replaces: 3400014) |
|
$ 7.42 |
