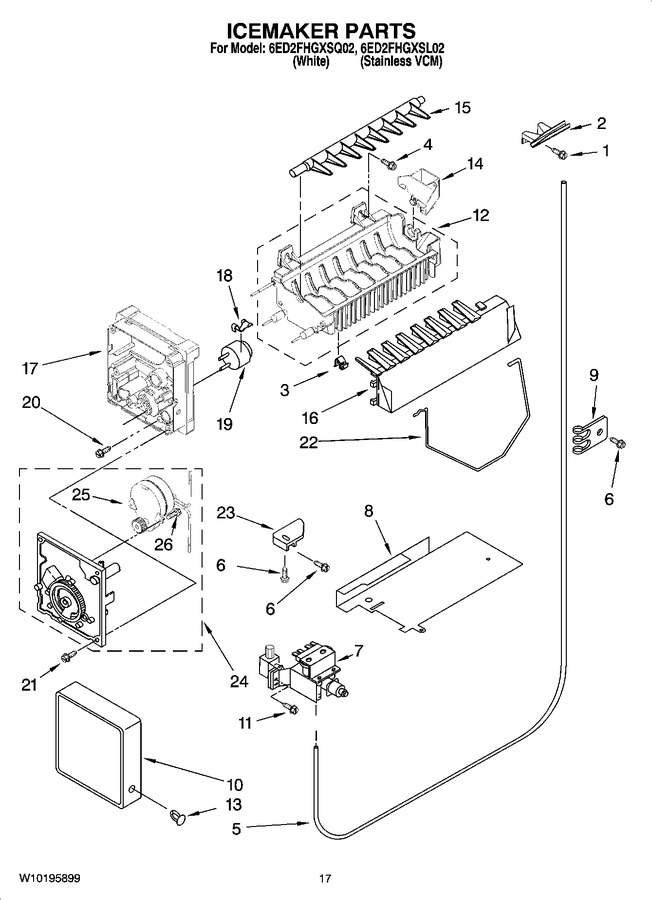

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 33.64 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 4 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 5 | W10823511 | Tube, Water (Replaces: 2304859) |
|
Immediately | $ 32.41 | ||||
| 6 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 7 | 2304756 | Filter Valve Asm |
|
- | |||||
| 8 | 2256178 | Heat Shield (Replaces: 2182414) |
|
- | |||||
| 9 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 11.18 | |||||
| 10 | WPW10289690 | Cover (Replaces: 2174183) |
|
Immediately | $ 8.40 | ||||
| 11 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 21.16 | |||||
| 12 | W10122523 | Mold & Heater Assembly (also Order 542638 Silicone Grease) |
|
- | |||||
| 13 | 489115 | Clip |
|
$ 5.51 | |||||
| 14 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 27.77 | |||||
| 15 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 16 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 86.05 | |||||
| 17 | WP2195914 | Support (Replaces: 2195914) |
|
$ 104.57 | |||||
| 18 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 19 | WP2321258 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 2321258) |
|
$ 98.98 | |||||
| 20 | WP489478 | Screw (Replaces: W10001260) |
|
$ 7.75 | |||||
| 21 | W10001240 | Screw |
|
$ 8.78 | |||||
| 22 | W11807379 | Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 60.20 | ||||
| 23 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 32.17 | ||||
| 24 | W10122522 | Module Assembly (includes Items 25 & 26) |
|
- | |||||
| 25 | 2321277 | Motor |
|
- | |||||
| 26 | W11096900 | Screw (Replaces: W10001220) |
|
- | |||||
| 100 | W10122504 | Complete Icemaker Assembly |
|
- |
