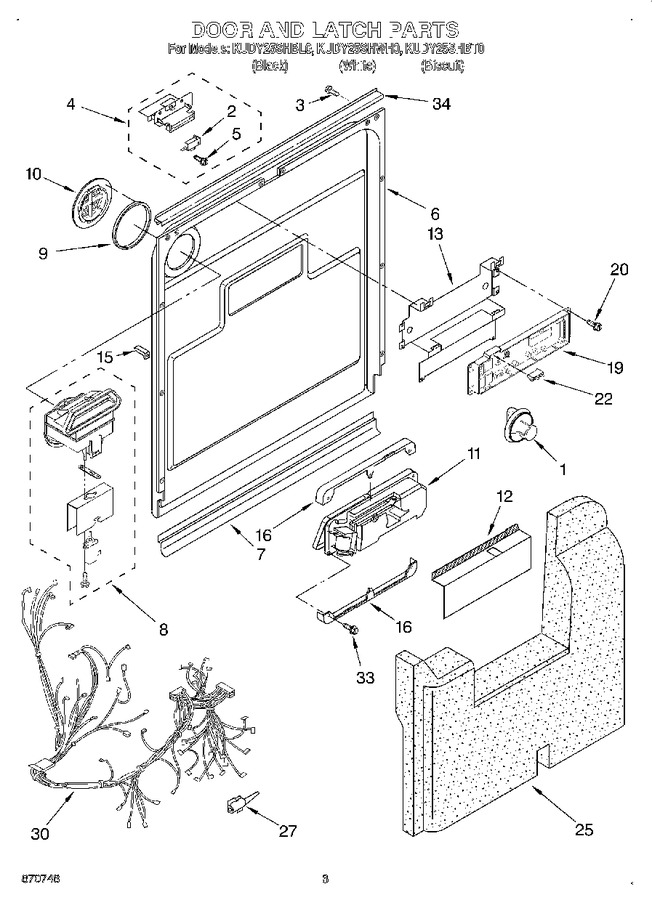

03 - Door And Latch


04 - Lower Washarm And Strainer


05 - Heater


06 - Fill And Overfill


07 - Upper Wash And Rinse


08 - Tub And Frame


09 - Pump And Motor


10 - Upper Rack And Track


11 - Lower Rack


12 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9743399		Knob, Dispenser				$ 23.33
2	3369325		Switch, Micro		Appelez-nous	-
3	WPW10348409		Screw, Door   (Replaces: 3369051)			Immediately	$ 8.20
4	3380654		Latch, Bolt Assy. (includes Item 2)				$ 74.75
5	3400404		Screw		Appelez-nous	-
6	9742353		Inner Door Mastic Assembly (also Includes Items 7, 9 & 10)		Appelez-nous	-
7	4172127		Seal, Door Lower   (Replaces: 9743542)			Immediately	$ 73.51
8	9742770		Vent Assembly (also Order Item 9)		Appelez-nous	-
9	9742782		Gasket, Vent				$ 11.24
10	9742780		Deflector, Vent (also Order Item 9)		Appelez-nous	-
11	WPW10616003		Dispenser, Assembly   (Replaces: 9744335)				$ 285.48
12	9743450		Shield, Dispenser		Appelez-nous	-
13	9742623		Bracket, Controls		Appelez-nous	-
15	9743487		Guide, Door		Appelez-nous	-
16	9743486		Bracket, Dispenser (2)		Appelez-nous	-
19	9744031		Control, Electronic		Appelez-nous	-
20	WP3177991		Screw (2)   (Replaces: 3177991)			Immediately	$ 7.55
22	9743451		Fuse Thermal Electronic		Appelez-nous	-
25	9742397		Sound Absorber		Appelez-nous	-
27	3376405		Elbow, Harness				$ 14.02
30	9744027		Wiring Harness, Main		Appelez-nous	-
33	3400700		Screw (6)		Appelez-nous	-
34	9743806		Seal, Console/door				$ 22.34
