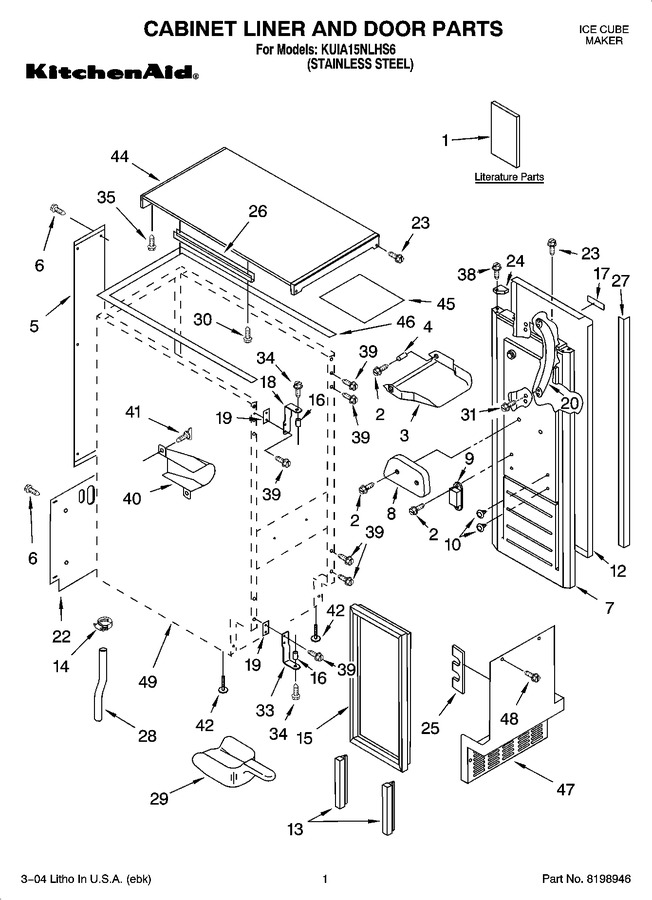

01 - Cabinet Liner And Door Parts


02 - Evaporator Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2217404		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2217232		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	3400886		Screw 8-18 X 1 1/4				$ 5.65
3	2185742		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	2932803B		Door		Appelez-nous	-
8	2185695		Cam, Door				$ 95.66
9	W11223751		Assembly, Magnetic Catch   (Replaces: 2217393)				$ 62.40
10	WP2189000		Plug, Hole   (Replaces: 2189000)			Immediately	$ 7.77
12	2185962		Wrap, Door		Appelez-nous	-
13	2217367		Gasket, Bottom		Appelez-nous	-
14	WP489503		Clamp   (Replaces: 489503)			Immediately	$ 11.29
15	WP2217294		Gasket, Door   (Replaces: 2217294)				$ 285.98
16	2185640		Sleeve, Hinge		Appelez-nous	-
17	2217214B		Nameplate		Appelez-nous	-
18	2185710		Hinge, Top				$ 94.38
19	2185709		Shim, Hinge		Appelez-nous	-
20	2208597S		Handle, Door		Appelez-nous	-
22	WPW10136199		Assembly, Unit Cover   (Replaces: 2185730)				$ 108.85
23	8281184		Screw 8-18x1/2 (4)		Appelez-nous	-
24	2185655B		Filler, Endcap (left Side)		Appelez-nous	-
24	2185656B		Filler, Endcap (right Side)		Appelez-nous	-
25	W10532250		Pad, Foam   (Replaces: 2185756)		Appelez-nous	-
26	2185691		Channel, Wiring		Appelez-nous	-
27	2185964		Grommet, Edge Guard (2)				$ 19.98
28	WP2185989		Tube, Drain   (Replaces: 2185989)				$ 115.22
29	W11420408		Scoop   (Replaces: 585158)				$ 28.61
30	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 8.10
31	WP179051		Screw 10-32 X 3/8   (Replaces: 3400037)			Immediately	$ 8.42
33	2185711		Hinge, Bottom				$ 96.36
34	2185712		Pin, Hinge				$ 49.37
35	WP250830		Screw, Ground 8-32 X 1/2   (Replaces: 489048)				$ 8.78
38	348689		Screw 8-18 X 3/4				$ 78.07
39	WP999367		Screw 10-32x11/16   (Replaces: 489423)				$ 8.56
40	2185927		Holder, Scoop				$ 89.07
41	8281228		Thumbscrew		Appelez-nous	-
42	8193716		Leg, Leveler (4)   (Replaces: 3374849)			Immediately	$ 88.96
44	2929700B		Top		Appelez-nous	-
45	2185690		Shield, Electrical		Appelez-nous	-
46	W11624957		Gasket, Top Panel   (Replaces: 2217293)		Appelez-nous	-
47	WP2185571B		Grill, Front   (Replaces: 2185571B)				$ 241.63
48	WP489474		Screw 8-18 X 1   (Replaces: 489474)			Immediately	$ 8.55
49	978030		Valve, Access (3/4``)				$ 137.25
49	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
49	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
49	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
49	2261590		Cleaner (stainless Steel)		Appelez-nous	-
49	978026		Valve, Access (5/16``)			Immediately	$ 134.49
49	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
49	978028		Valve, Access (1/2)		Appelez-nous	-
49	978029		Valve Access (5/8``)				$ 93.85
49	N/A		Parts Not Illustrated And Optional Parts (not Included)		Appelez-nous	-
49	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 116.46
49	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 82.13
49	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 243.14
