Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2185738 Box, Control Appelez-nous -
2 2185657 Transformer Special Order $ 163.75

3 2185592 Assembly, Switch (also Order 4) Special Order $ 94.83

4 2208317W Overlay Appelez-nous -
5 6100499 P.c. Board Appelez-nous -
6 WP2149705 Switch, Plunger   (Replaces: 2149705) In-Stock Immediately $ 40.40

7 2185694 Lens, Led Appelez-nous -
8 2185692 Wiring Harness Grid/ Light Appelez-nous -
9 745362 Bulb Appelez-nous -
12 WPW10503764 Thermostat, Bin   (Replaces: 2217288) Special Order $ 125.23

13 2185825 Clamp Appelez-nous -
14 2185703 Wiring Harness, Main To Pump, Appelez-nous -
15 WP3400884 Screw   (Replaces: 3400884) Special Order $ 8.10

18 WP489443 Screw 8-16 X 3/8   (Replaces: 3400850) In-Stock Immediately $ 8.33

20 2217289 Thermister, Ice Control Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

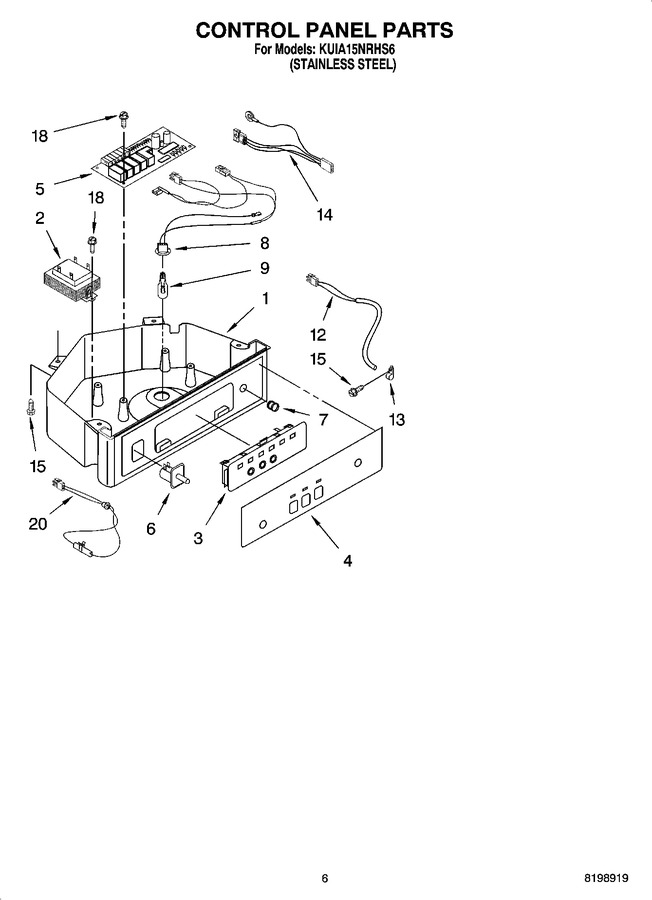

Diagram for KUIA15NRHS6
