01 - Cabinet Liner And Door Parts

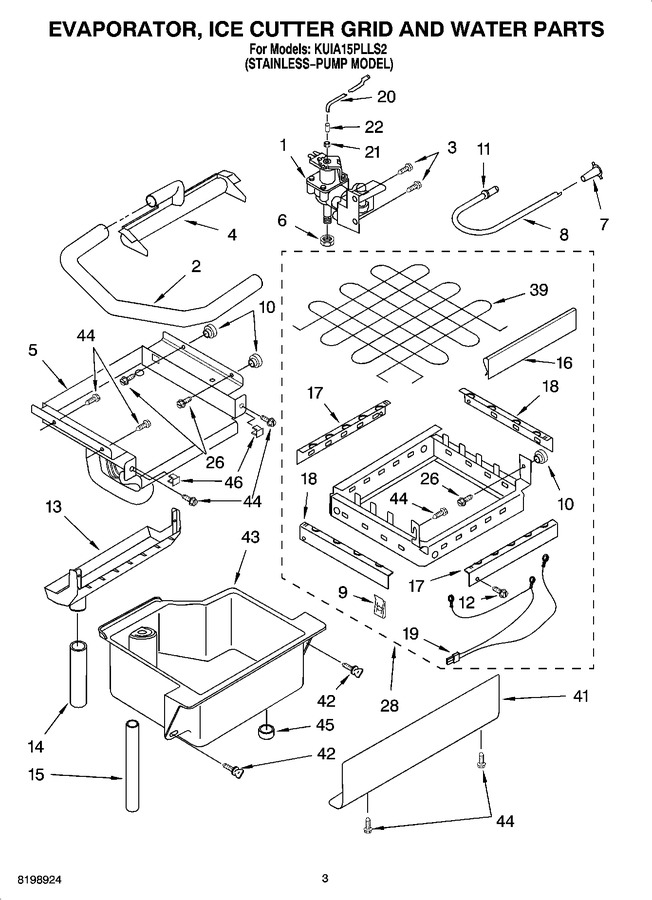

02 - Evaporator Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10801996		Valve, Complete Water   (Replaces: 2185758)				$ 225.37
2	W10863947		Tube, Plastic   (Replaces: 2217286)				$ 87.44
3	W11693756		Screw 8-15 X 5/8   (Replaces: 488687)			Immediately	$ 14.76
4	W10863947		Dispenser, Water   (Replaces: 2185523)				$ 87.44
5	WPW10218037		Evaporator   (Replaces: W10218037)				$ 559.86
6	WP627018		Nut, Compression   (Replaces: 627018)				$ 11.51
7	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
8	W10823511		Tube, Water Fill   (Replaces: 2172593)			Immediately	$ 32.41
9	488660		Nut, Speed		Appelez-nous	-
10	836667		Spacer		Appelez-nous	-
11	2208539		Fastener, Pushnut				$ 8.31
12	WP489443		Screw   (Replaces: 489443)			Immediately	$ 8.33
13	WP2185625		Reservoir, Water Slide   (Replaces: 2185625)				$ 188.34
14	WP2185626		Tube   (Replaces: 2185626)				$ 110.82
15	WP2313890		Hose, Overflow   (Replaces: 2185673)				$ 79.87
16	2217310		Guide, Ice Grid		Appelez-nous	-
17	2185615		Bracket, Front And Rear		Appelez-nous	-
18	8201791		Bracket, Side Left And Right   (Replaces: 2185611)				$ 28.15
19	2185681		Harness, Grid				$ 137.90
20	2208533		Tube		Appelez-nous	-
21	WP245183		Nut, Ball Sleeve   (Replaces: 487857)				$ 8.84
22	WP487627		Ball Sleeve   (Replaces: 487627)				$ 11.73
26	3400886		Screw 8-18 X 1 1/4				$ 5.65
28	WP2313637		Grid Assembly (complete)   (Replaces: 2185614)				$ 384.29
39	4387020		Wire, Grid Cutter   (Replaces: 2174754)				$ 106.21
41	2185570		Cover, Grid				$ 105.88
42	8281228		Thumbscrew		Appelez-nous	-
43	8201653		Reservoir, Water		Appelez-nous	-
44	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 8.10
45	WP2185696		Cap, Drain   (Replaces: 2185696)				$ 27.54
46	WP3400909		Nut, Push-in   (Replaces: 3400909)				$ 7.94
