01 - Cabinet Liner And Door Parts


02 - Evaporator, Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts, Optional Parts (not Included)

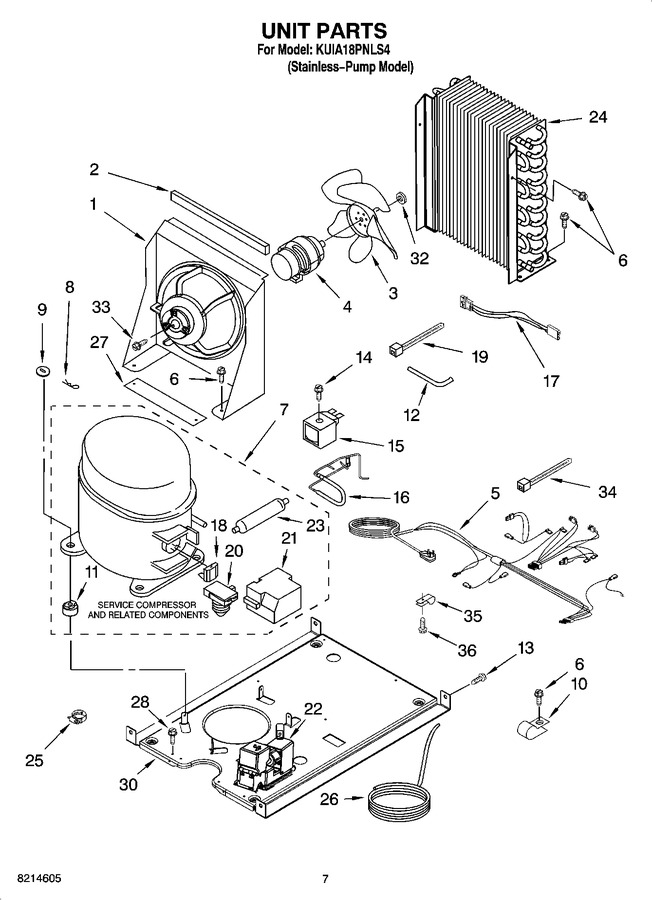

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2185532		Bracket, Fan Mtg.   (Replaces: 2217434)				$ 102.18
2	2185675		Pad, Foam		Appelez-nous	-
3	2190685		Blade, Fan				$ 52.00
4	W10822259		Motor, Fan   (Replaces: 2188537)			Immediately	$ 221.30
5	2313636		Wiring Harness, Complete Unit (includes Power Cord)		Appelez-nous	-
6	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 8.40
7	W11735041		Compressor (includes Illus. 11,18, 20,21 & 23)   (Replaces: 2208370)				$ 675.23
8	A201435		Clip, Mounting		Appelez-nous	-
9	A201441		Shim (4)				$ 9.25
10	2185960		Clamp (power Cord)		Appelez-nous	-
11	2185965		Grommet (4) (production)   (Replaces: 2217318)		Appelez-nous	-
11	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 7.30
12	W10528572		Tube, Process   (Replaces: 2208415)				$ 38.79
13	WP999367		Screw   (Replaces: 489423)				$ 8.56
14	489472		Screw		Appelez-nous	-
15	759112		Coil, Solenoid				$ 72.80
16	W10724988		Valve, Body   (Replaces: 2208413)				$ 329.34
17	2187835		Wiring Harness, Condenser Fan		Appelez-nous	-
18	WP2217223		Overload (production)   (Replaces: 2217223)				$ 142.71
18	WP4387938		Overload (service (includes Relay))   (Replaces: 4387938)				$ 198.58
19	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
20	WP2217224		Relay, Start (production)   (Replaces: 2217224)			Immediately	$ 104.82
20	WP4387938		Relay, Start (service (includes Overload))   (Replaces: 4387938)				$ 198.58
21	WP2162358		Cover Terminal (production)   (Replaces: 2208371)				$ 95.29
21	WP2162358		Cover Terminal (service)   (Replaces: 4387731)				$ 95.29
22	W11539855		Pump, Drain   (Replaces: 2208534)			Immediately	$ 629.75
23	W10843121		Drier (production)   (Replaces: 2209223)			Immediately	$ 57.13
23	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 57.13
24	8201810		Condenser   (Replaces: 2217398)				$ 304.28
25	W10861184		Clamp   (Replaces: 489505)				$ 65.90
26	2208432		Tube, Drain		Appelez-nous	-
27	2217397		Pad, Foam (2)		Appelez-nous	-
28	WP489128		Screw   (Replaces: 488500)				$ 11.40
30	2217446		Base, Unit   (Replaces: 2217423)		Appelez-nous	-
32	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
33	WP8281196		Screw 8-32 X 3/4   (Replaces: 489494)			Immediately	$ 7.55
34	851095		Wire Tie		Appelez-nous	-
35	W11456069		Clamp   (Replaces: 2185788)			Immediately	$ 22.40
36	WP3400884		Screw   (Replaces: 3400884)				$ 8.10
	W11179302		Cleaner, Icemaker   (Replaces: 8171307)			Immediately	$ 31.34
