SELECT A DIAGRAM

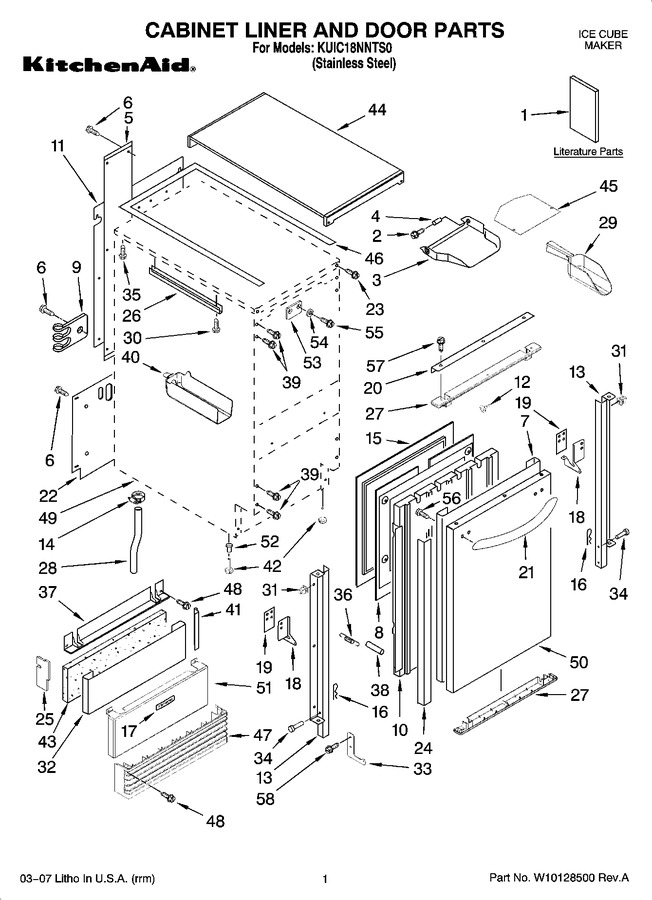

01 - Cabinet Liner And Door Parts


02 - Evaporator, Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2313820		Use & Care Guide		Appelez-nous	-
1	2324311		Service & Wiring Sheet		Appelez-nous	-
2	3400886		Screw 8-18 X 1 1/4				$ 5.65
3	2208354		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	2313817		Panel, Wrap		Appelez-nous	-
8	2217298		Panel, Interior		Appelez-nous	-
9	WP488366		Clamp Tube   (Replaces: 2208136)				$ 11.92
10	2208377		Insulation		Appelez-nous	-
11	W10218024		Ballast-back, Im   (Replaces: 2217227)		Appelez-nous	-
12	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
13	2217465		Bracket, Door (right Side)		Appelez-nous	-
13	2217466		Bracket, Door (left Side)		Appelez-nous	-
14	WP489503		Clamp   (Replaces: 489503)			Immediately	$ 11.29
15	W11624959		Gasket, Door   (Replaces: 2217295)				$ 244.84
16	2208535		Clip				$ 7.73
17	W10046610		Nameplate				$ 33.40
18	2208425		Hinge (left Side)		Appelez-nous	-
18	2208426		Hinge (right Side)		Appelez-nous	-
19	2208401		Shim, Hinge		Appelez-nous	-
20	WP2208452B		Handle, Icemaker   (Replaces: 2208452B)				$ 115.37
21	WP9872207S		Handle, Bar   (Replaces: 9872207S)				$ 193.95
22	WPW10136200		Assembly, Unit Cover   (Replaces: 2208399)				$ 113.70
23	8281186		Screw, Handle		Appelez-nous	-
24	2208595B		Grommet, Edge Guard(2)		Appelez-nous	-
25	2217225		Pad, Foam		Appelez-nous	-
26	2185691		Channel, Wiring		Appelez-nous	-
27	W11413461		Endcap, Door   (Replaces: 2208350B)		Appelez-nous	-
28	2208453		Tube, Drain		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 2208386)				$ 28.61
30	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 8.10
31	WP692400		Nut, Push-in   (Replaces: 692400)			Immediately	$ 8.02
32	2208382B		Panel, Wrap Lower		Appelez-nous	-
33	2208487		Bracket, Spring		Appelez-nous	-
34	2208417		Pin, Hinge		Appelez-nous	-
35	WP250830		Screw, Ground   (Replaces: 489048)				$ 8.78
36	WP2208570		Spring, Hinge   (Replaces: 2208570)				$ 23.79
37	2208383B		Endcap, Panel		Appelez-nous	-
38	2208530		Dampener, Spring		Appelez-nous	-
39	WP999367		Screw   (Replaces: 489423)				$ 8.56
40	2208449		Holder, Scoop		Appelez-nous	-
41	2208596B		Grommet, Edge Guard(2)		Appelez-nous	-
42	8193716		Leg, Leveler (4)   (Replaces: 3374849)			Immediately	$ 88.96
43	2208384		Insulation		Appelez-nous	-
44	2929701B		Top		Appelez-nous	-
45	2185690		Shield, Electrical		Appelez-nous	-
46	2217296		Gasket, Top Panel		Appelez-nous	-
47	WP2217206B		Grill, Front   (Replaces: 2217206B)				$ 116.28
48	WP489474		Screw 8-18 X 1   (Replaces: 489474)			Immediately	$ 8.55
50	2208352B		Panel, Exterior		Appelez-nous	-
51	2208594S		Panel, Lower				$ 243.24
52	3400240		Nut, Leg Leveler		Appelez-nous	-
53	2208434		Strike, Magnet		Appelez-nous	-
54	3400916		Washer		Appelez-nous	-
55	8281191		Screw				$ 6.77
56	WP179051		Screw (handle Bar)   (Replaces: 3400037)			Immediately	$ 8.42
57	8281184		Screw		Appelez-nous	-
58	WP488163		Screw   (Replaces: 488208)				$ 7.92

    View Diagram in Separate Window       Print Part List
