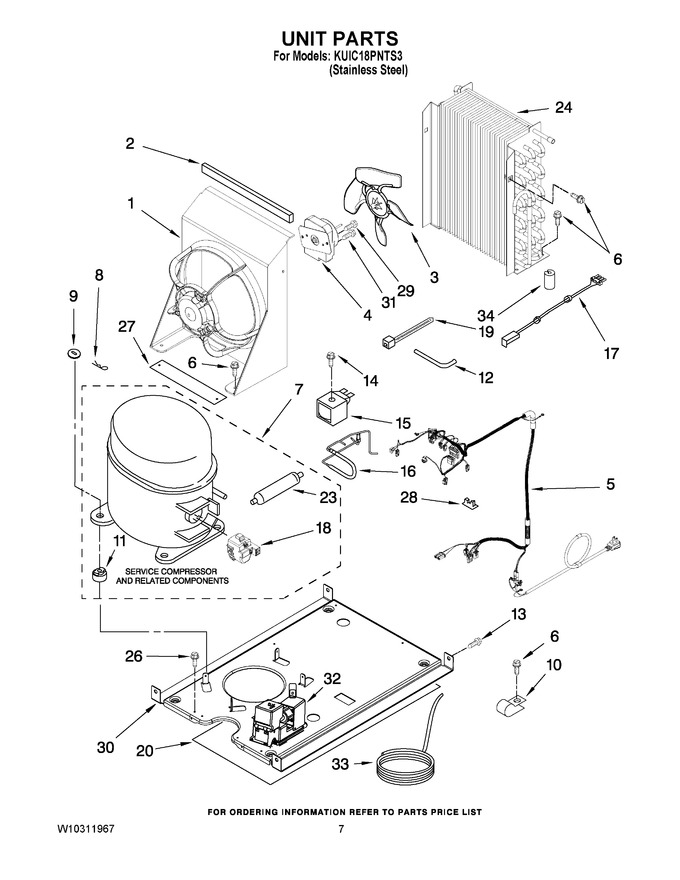

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2185532 | Bracket, Fan Mtg. (Replaces: 2185532) |
|
$ 102.18 | |||||
| 2 | 2185675 | Pad, Foam |
|
- | |||||
| 3 | WP2188935 | Blade, Fan (Replaces: 2188935) |
|
Immediately | $ 97.29 | ||||
| 4 | W10124096 | Motor & Mounting Plate Assembly (Replaces: 2315558) |
|
Immediately | $ 112.20 | ||||
| 5 | W10193296 | Wiring Harness, Complete Unit (includes Power Cord) |
|
- | |||||
| 6 | WP489069 | Screw 8-18 X 1/2 (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 7 | WPW10605286 | Compressor (includes Illus. 11 & 23) (Replaces: W10136195) |
|
$ 773.42 | |||||
| 8 | 8559320 | Clip, Mounting (Replaces: 3405028) |
|
$ 48.14 | |||||
| 9 | A201441 | Shim (4) |
|
$ 9.25 | |||||
| 10 | 2185960 | Clamp (power Cord) |
|
- | |||||
| 11 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 11 | 2185965 | Grommet (4) (production) (Replaces: 2217318) |
|
- | |||||
| 12 | W10528572 | Tube, Process (Replaces: 2208415) |
|
$ 38.79 | |||||
| 13 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 8.38 | ||||
| 14 | 489472 | Screw |
|
- | |||||
| 15 | WPW10206473 | Coil, Solenoid (Replaces: W10206473) |
|
$ 194.44 | |||||
| 16 | W11748341 | Hot Gas Valve (Replaces: 2313806) |
|
Immediately | $ 101.88 | ||||
| 17 | WP2187629 | Wiring Harness, Condenser Fan (Replaces: 2187629) |
|
$ 132.58 | |||||
| 18 | W10136197 | Start Relay & Overload Combo Device |
|
$ 76.43 | |||||
| 19 | 851095 | Strap |
|
- | |||||
| 20 | W10282061 | Shield,heat |
|
- | |||||
| 23 | W10843121 | Drier (production) (Replaces: 2319826) |
|
Immediately | $ 57.13 | ||||
| 23 | W10843121 | Drier (service) (Replaces: W10183199) |
|
Immediately | $ 57.13 | ||||
| 24 | WP2313624 | Condenser (Replaces: 2313624) |
|
$ 366.37 | |||||
| 26 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 27 | 2217397 | Pad, Foam (2) |
|
- | |||||
| 28 | 1115375 | Clip, Wiring |
|
$ 11.15 | |||||
| 29 | 8281197 | Screw |
|
- | |||||
| 30 | 2217446 | Base, Unit |
|
- | |||||
| 31 | WP8281196 | Screw (Replaces: 8281196) |
|
Immediately | $ 7.55 | ||||
| 32 | W11539855 | Pump, Drain (Replaces: 2208534) |
|
Immediately | $ 629.75 | ||||
| 33 | 2208432 | Tube, Outlet |
|
- | |||||
| 34 | W10852725 | Grommet, Cond (1) (Replaces: 2319835) |
|
$ 8.09 | |||||
| NI | N/P | Refrigerant Charge (6.5 Oz. (r134a)) |
|
- |
