01 - Cabinet Liner And Door Parts
02 - Evaporator, Ice Cutter Grid And Water Parts
03 - Pump Parts

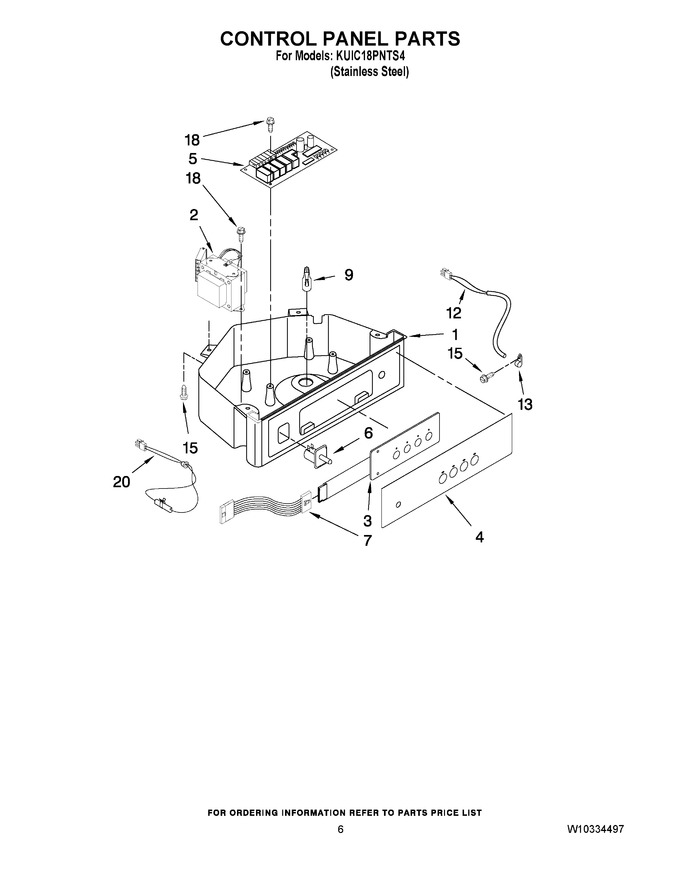

04 - Control Panel Parts
05 - Unit Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2185738 | Box, Control |
|
- | |||||
| 2 | WP2310139 | Transformer (Replaces: 2310139) |
|
$ 322.25 | |||||
| 3 | 2304122 | Assembly, Switch (also Order No.4) |
|
$ 94.45 | |||||
| 4 | W10206463 | Overlay |
|
- | |||||
| 5 | WPW10226156 | Control Board (Replaces: W10226156) |
|
Immediately | $ 396.36 | ||||
| 6 | WP2149705 | Switch, Plunger Grid/light (Replaces: 2149705) |
|
Immediately | $ 40.40 | ||||
| 7 | 2187585 | Wire Assy-active Overlay Jumper |
|
$ 55.36 | |||||
| 9 | 745362 | Bulb |
|
- | |||||
| 12 | WPW10503764 | Thermostat, Bin (Replaces: 2313633) |
|
$ 125.23 | |||||
| 13 | 2185825 | Clamp |
|
- | |||||
| 15 | WP3400884 | Screw 8-18 X 5/8 (Replaces: 3400884) |
|
$ 8.10 | |||||
| 18 | WP489443 | Screw 8-16 X 3/8 (Replaces: 3400850) |
|
Immediately | $ 8.33 | ||||
| 20 | WP2313635 | Thermister, Ice Control (Replaces: 2313635) |
|
$ 99.96 |
